YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply

Shenzhen Yanbixin Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply from wholesalers

    Buy cheap YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply from wholesalers
    • Buy cheap YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply from wholesalers

    YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB12D3-10A-W
    Certification : cUL, TUV, CQC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply

    110V 250V 6A Low Leakage Current Filter Single Phase EMI Filter


    YB12D2 Single Phase EMI Filter:


    YB12D2-10A-W is a single phase power line filter designed to reduce or eliminate the existence of electromagnetic interference in the power system.It is usually composed of inductors, capacitors and resistors, with good common-mode and differential mode attenuation.


    Feature Of YB12D2 Series Emi Filter:

    1. EMI Filter compact size can be applied to various situations.
    2. For symmetric and asymmetric interference attenuation
    3. Excellent high/low frequency noise attenuation
    4. Customized products according to customer's requirements
    YB12D2 Power Line Filter Application:

    1. Electrical and electronic equipment


    2. Medical equipment


    3. Building automation


    4. Office automation and datacom equipment


    Technical Specification:


    ItemSingle Phase EMI Filter
    ModelYB12D2
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency10K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage115V/250V
    Rated Current1~30A(optional)
    Environmental Temperature40°C
    Temperature Range25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line1450VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/50HZ 5uA Max
    MOQ100PCS
    PriceNegotiable

    Rule Of Nomination:


    YB-----21--------D2---------6A-----------Q--------------( 5 )

    ¦ ¦ ¦ ¦ ¦

    circuit case current connection Medical-type


    *Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg


    Electrical Schematic:


    Mechanical Dimension(Unit: mm)


    Insertion loss table(In 50ohm system according IEC/CISPR No.17)

    Common mode -------- differential mode


    6A

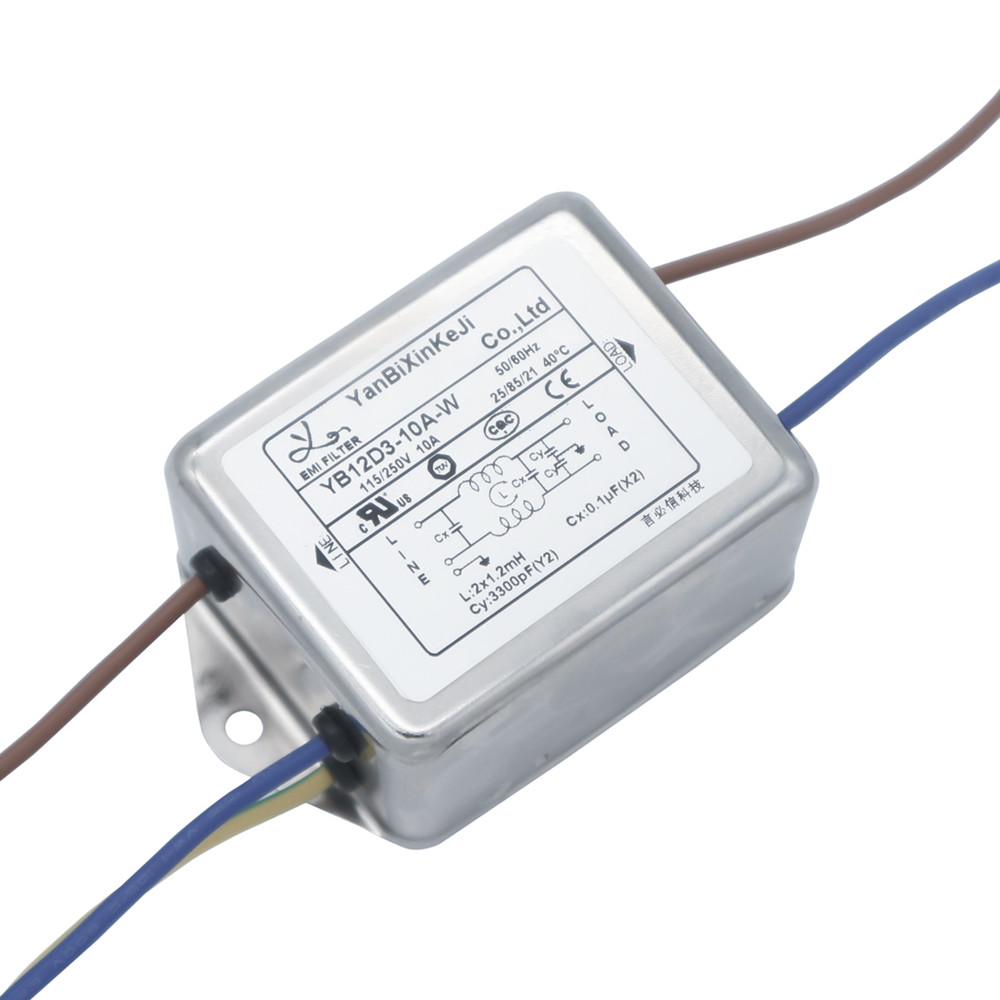

    YB12D2-6A-Q(R) Single Phase Filter Picture:


    YB12D2 General Purpose AC EMI Filter Single Phase EMC Filter For Power Supply


    The Pictures Of Factory:


    Single Phase Filter:
    cUL:20190321-E471748
    TUV:B0899310001Rev.01
    CQC:19001226449
    CE:SZAIS180620005-01
    ROHS:MMCRHRWM60371744
    Three Phase Filter:
    cUL:20190325-E502442
    ENEC:ENEC-02580
    CE:SZAIS180620005-01
    ROHS:MMCRHRWM60371744

    FAQ:


    Q1: Do you offer customized product ?
    A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.


    Q2: Are you a factory?
    A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2008.


    Q3: How long is the delivery time?
    A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


    Q4: How about the payment terms?
    A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.


    Q5: How about the certificates?
    A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.


    Q6: How about the sample?
    A: Free samples. You need to pay for Currier cost. Please contact us for details.


    We Can Provide Professional Solutions For Customers. Please Contact Us For Any Question.
