IEC EMI Inlet Filter 1A Low Current Power Inlet Filter For Medical
Equipment
IEC EMI Inlet Filter:
The IEC EMI inlet filter is a passive electronic component designed
to filter electromagnetic interference (EMI) from the power supply
entering an electronic device.Our Power Inlet filters come in a variety of sizes and
configurations to accommodate different types of electronic
devices. Its common current is: 1A,3A,6A,8A,10A, can be customized higher
current, common voltage is :115V/250V. They may also include additional features such as power entry
modules, fuses, switches to provide additional protection for
electronic devices.
Feature Of Power Inlet Filter:
1. Mounting Options: Power Inlet Filters are available in different
mounting options, such as panel-mount, snap-in, and flange-mount.
2. Voltage and Current Rating: A Power Inlet Filter is designed to
operate within a specific voltage and current range. The voltage
rating should match the voltage of the power supply, and the
current rating should be sufficient to handle the maximum current
that the device will draw under normal operating conditions.
3. (R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and hipot testing.
Application Fields:
1. Medical equipment: Power input filter can be used in medical
equipment, such as MRI machines, CT scanners and ultrasound
equipment.
2. Communication equipment: Power input filter can mainly be used
in routers, switches, modems and other communication equipment.
3. Renewable energy systems: Power inlet filter can be used in
renewable energy systems such as solar inverters and wind turbines.
Technical Specification:
| Product | YB-C Series EMI Power Inlet Filter |
| Model | YB11C2-1A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Operating Frequency | 50/60HZ |
| Insertion Loss | 20~70dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
|
| | |
| YB11C1-1A | 1A | Q | S | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11C1-2A | 2A | Q | S | - | - | Fig.1 |
| YB11C1-3A | 3A | Q | S | - | - | Fig.1 |
| YB11C1-4A | 4A | Q | S | - | - | Fig.1 |
| YB11C1-6A | 6A | Q | S | - | - | Fig.1 |
| YB11C1-8A | 8A | Q | S | - | - | Fig.1 |
| YB11C1-10A | 10A | Q | S | - | - | Fig.1 |
| YB11C2-1A | 1A | Q | S | - | - | Fig.1 |
| YB11C2-2A | 2A | Q | S | - | - | Fig.1 |
| YB11C2-3A | 3A | Q | S | - | - | Fig.1 |
| YB11C2-4A | 4A | Q | S | - | - | Fig.1 |
| YB11C2-6A | 6A | Q | S | - | - | Fig.1 |
| YB11C2-8A | 8A | Q | S | - | - | Fig.1 |
| YB11C2-10A | 10A | Q | S | - | - | Fig.1 |

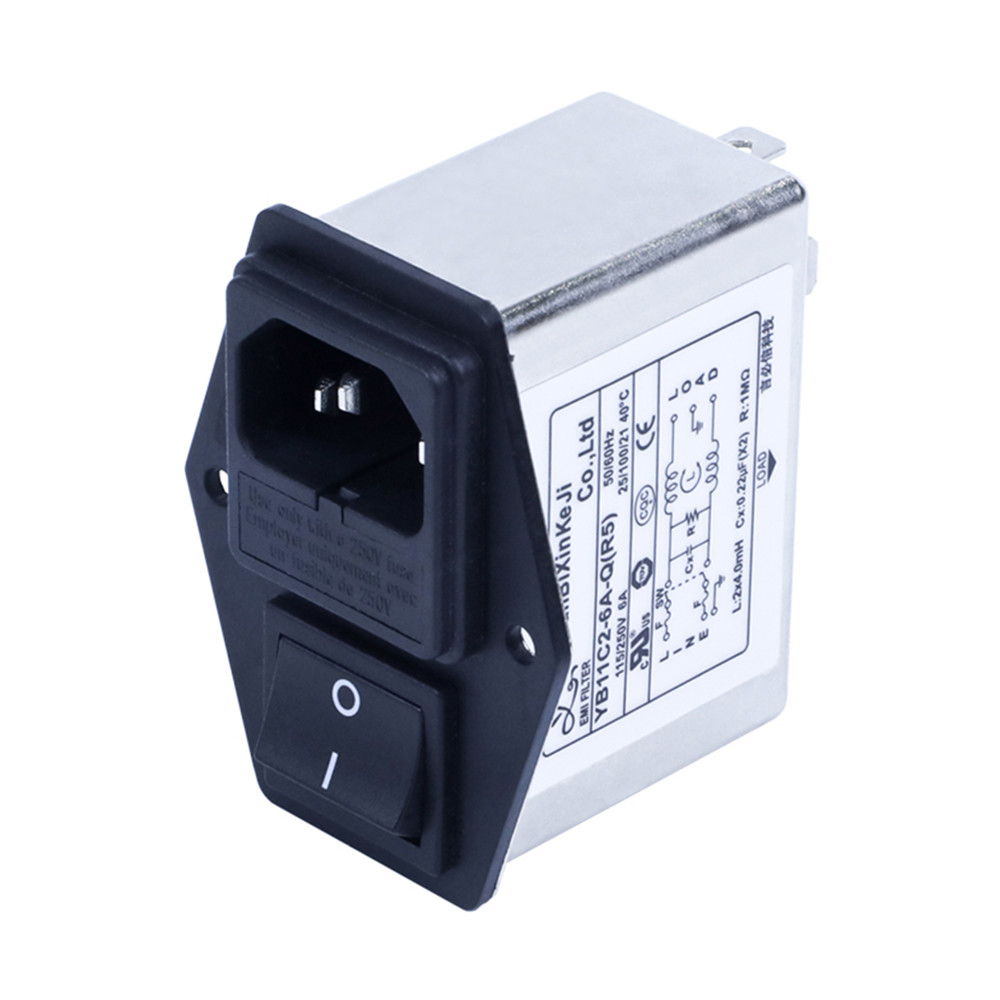

YB11C2-6A-Q(R5) Picture:
Physical Dimensions:
Electrical Schematic:
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Our Company:
- We are a listed company. NO:667344, brand guarantee, reliable quality
- We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH
certification to ensure the product quality
- We have the relevant professional experimental equipment, so we can
provide a free diagnostic conducting test for you.
- Free EMC rectification technical support and provide free test
samples
- Automation technology, scale production, excellent price
- Good service, fast delivery!
- After-sales service: free replacement within three years, free maintenance within 6
years, life-long maintenance
- Cooperate with the top scientific research laboratory
- We have a professional R&D tea
Factory Pictures:
FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.
Q2: Are you a factory?
A: Yes, we have been an integration of EMI&EMC FILTER R&D,
Production and sales high new technology enterprise since 2008.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days
for small order or the stock goods; 10 to 15 days for mass
production after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do 30% T/T deposit , 70% T/T deposit before
shipment and balance against shipment. And we also accept other
payment methods.
Q5: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase
RFI filter, house appliance noise filter, Medical equipment filter,
inverter/converter EMC filter, etc.
We Can Provide EMC technical rectification and always can custom
product as your requirement to pass the EMC test. Let's talk in
details.
