220V 3A 6A EMI EMC AC Power Noise Filter For LED Lighting Strip
220V 3A 6A low pass power line EMI EMC Filter Noise Filter with
wire-lead for LED lighting strip
| Item | Power line Filter |
| Model | YB12E2-6A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 15~25working days |
Features:
-- Rated currents from 1 to 20A
-- General-purpose filtering performance
-- Optional medical versions((R5) type)
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- LED lighting
-- Office automation equipment
Rule of Nomination:
YB 12 E1/E2/E4 --3A/6A/10A -- W/Q ( R 5 )
¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:
Fig.1 Standard type

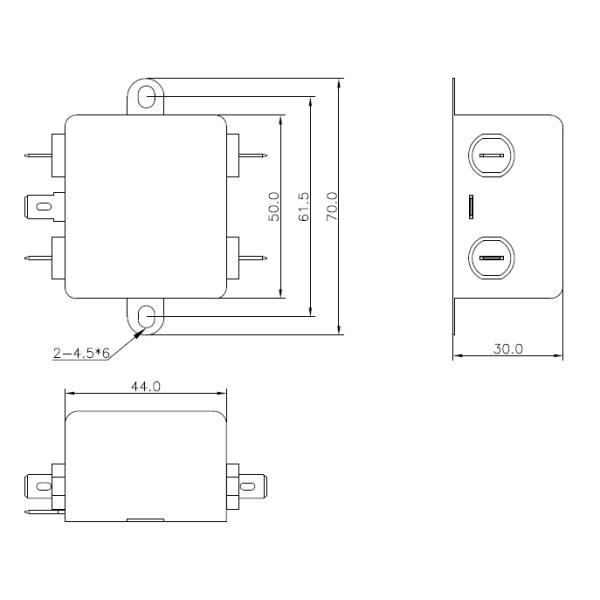

Mechanical Dimension(Unit: mm)
---E1
---E2
---E4
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode ---------------- differential mode
Our Advantages:
1. Customized: We have a professional R&D team; our aims is we
won't let customers
spend any extra money.
2. Listed company: National high-tech enterprises, brand assurance,
reliable quality, and
we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research
laboratories to provide free
EMC rectification technical support, samples; and free conduction
test.
4. Scale production: Automation technology, scale production, great
price, excellent, service,
fast delivery! Free replacement within three months, free
maintenance within six years,
life-long maintenance!
5. Certificates: We have got cUL, UL, TUV, CE, CQC, ROHS, ISO9001
approval.
6. Free sample and free EMC rectification can be supplied as your
request.
7. We can custom products as your requirement, supply OEM and ODM
services.
Factory Pictures:
Our Exhibitions:
Certifications:
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
The packing Specification:
RFQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase
RFI filter, house appliance noise filter, Medical equipment filter,
inverter/converter EMC filter, etc.
Q: What is the function of your product EMC/EMI/noise filter?
A: The function of power line filters is to filter the
electromagnetic interference, ensuring that your equipment is
working properly without interference with each other
Q: Are your products belong to high-quality
A: Yes, our products have passed UL, TUV, CE, ROHS, CQC approval.
our customers like Hisense, Foxconn recognize our products well.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are
supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within
six-year, life-long maintenance.
Q: Do you supply OEM/ODM services?
A: Yes, we can do OEM/ODM only if you meet our MOQ request for
OEM/ODM customers
Q: Can you provide Research and development New product service?
A: Yes, Our R&D team can custom product as your requirement.
