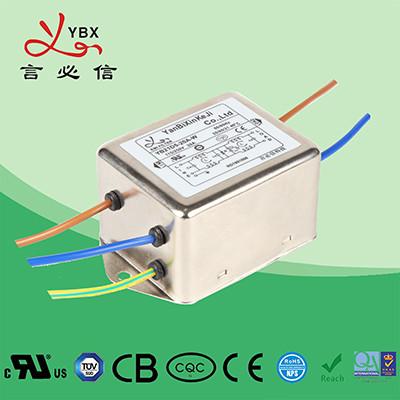

    Two Stage 20A 30A 250V UL 94V-0 AC Power Line Filter For Fitness Equipment

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB21D5-30A-S
    Certification : cUL, TUV, CQC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Two Stage 20A 30A 250V UL 94V-0 AC Power Line Filter For Fitness Equipment

    Two Stage 20A 30A 250V UL 94V-0 AC Power Line Filter For Fitness Equipment


    20A 30A 250V two-stage enhanced performance AC Power Line EMI EMC Filter For treadmill, fitness equipment

    Technical Specification:


    ItemPower line Filter
    ModelYB21D5-30A-S
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency10K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage115V/250V
    Rated Current1~30A
    Environmental Temperature40°C
    Temperature Range25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line1450VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/60HZ 0.8mA Max
    MOQNegotiable
    PriceNegotiable
    Lead Time15~20 days

    Features:


    -- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device;


    -- Various terminal options allow you to select;


    -- There are a variety of parts and combinations to meet different customer's EMC tests.


    Name regulation:


    YB 21 D5 - 30A - S

    ¦ ¦ ¦ ¦

    circuit case current connection


    Electrical schematic:



    Mechanical Dimension(Unit: mm)


    Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

    Common mode -------- differential mode

    1A 6A


    8A 10A


    20A 30A

    50A


    Our advantages:

    • We are a listed company. NO:667344, brand guarantee, reliable quality
    • We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
    • We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
    • Free EMC rectification technical support and provide free test samples
    • Automation technology, scale production, excellent price
    • Good service, fast delivery!
    • After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance
    • Cooperate with the top scientific research laboratory
    • We have a professional R&D team

    FAQ:


    Q: What are the main products of your company?
    A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.


    Q: How is the quality of your product?
    A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.


    Q: What are services available for pre-batch orders?
    A: Free samples and EMC technical rectification services are supplied before-sale


    Q: What are services available after-sale?
    A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.


    Q: Are OEM and ODM services available?
    A: Yes, we can accept OEM or ODM customers only if you meet our MOQ request.
