EMI Noise Filter IEC 320 Socket Plug In Filter 250VAC For Power
Equipment
Technical Specification of EMI filter:
| Item | Socket Emi Power Filter |
| Model | Socket Emi Power Filter YB-A |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 500pcs |
| Price | USD1.39~1.85/Meter |
| Lead Time | 5~15 weekday |
Power Entry Module EMI Power Filter Inlet 1-10A Emi Filter with
Medical Type
Features Of EMI filter:
-- Excellent performance/compact structure
-- Screw-on version from front rear side
-- Optional medical versions((R5) type)
-- Quick connect(6.35*0.8mm), solder or wire
-- High performance and high attenuation power filters with IEC 320
socket
-- (R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and high hipot testing.
-- There are a variety of parts and combinations to meet different
customer's EMC tests.
-- Customized products according to customer's requirements
Typical Applications Of EMI filter:
-- Specially designed for LCD and PDP TV, medical
applications,general electrical appliances.
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
-- Single-phase power supplies, switch-mode power supplies
Rule of Nomination Of EMI filter:
YB 11 A1 - 10A - Q/S ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current Q:quick-on optional
S:tin solder
Electrical schematic Of EMI filter:
Standard type Medical(R5) type
Fig.1 Fig.2
Mechanical Dimension(Unit: mm) Of EMI filter:
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|
| A1 | 58 | 28.5 | 21 | 50 | 40 | 22.4 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
|
| A2 | 58 | 28.5 | 21 | 52 | 40 | 25 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
|
Tolerances
| ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | | | |
Tabulates Of EMI filter:
| Rated Current
@40°C | Terminal Options* | Bleeder resistor (optional) | G (optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage | Operating Frequency (Hz) |
| Model No. |
| | |
| YB11A1-1A | 1A | Q | S | W | - | - |
<0.8mA | Fig.1 |
115/250V |
50/60Hz |
| YB11A1-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A1-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A1-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A1-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A1-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A1-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A1-15A | 15A | Q | S | W | - | - | Fig.1 |
| YB11A2-1A | 1A | Q | S | W | - | - | Fig.1 |
| YB11A2-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A2-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A2-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A2-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A2-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A2-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A2-15A | 15A | Q | S | W | - | - | Fig.1 |
Medical Products Model Lists:
| Rated Current
@40°C
| Terminal Options
| Bleeder resistor(optional)
R(MΩ) | Medical equipment
5 |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz)
|
| Model No. |
| | |
| YB11A1-1A-x(R5) | 1A | Q | S | W | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB11A1-2A-x(R6) | 2A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-3A-x(R5) | 3A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-4A-x(R5) | 4A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-6A-x(R5) | 6A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-8A-x(R6) | 8A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-10A-x(R5) | 10A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A1-15A-X(R5)** | 15A | Q | S | W | 1 | 5 | - | Fig.2 |
W: Wire UL1015 18AWG

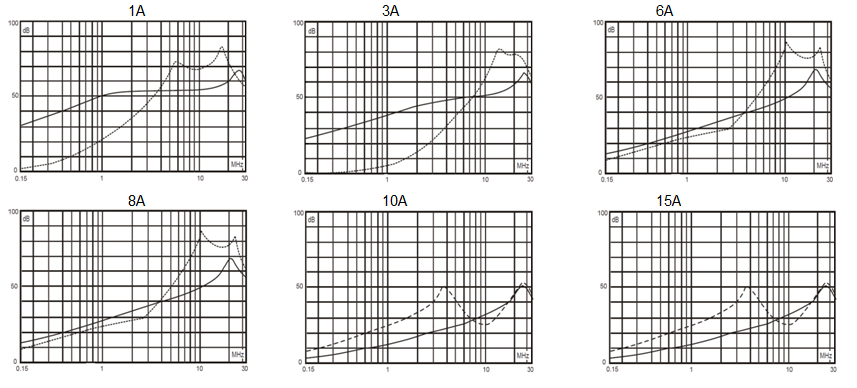

Insertion loss table(In 50ohm system according to IEC/CISPR No.17) Of EMI filter:
Common mode -------- differential mode
