115V 250V 3A 6A Single Phase Plug In RFI Filter EMI Noise Filter
YB11C1-10A-Q 10A IEC Inlet EMI&EMC Socket Filter AC Line Noise
Description of product:
- Rated currents up to 10A
- Single or dual-fuse holder
- 2-pole rocker switch
- Optional medical versions((R5) type)
- The product uses ultra small size
Approvals:
| Item | Power line Filter |
| Model | YB11C9-10A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiated |
| Price | Negotiated |
| Design corresponding to | UL1283, CSA C22.2 No.8, IEC/EN 60939, CQC GB 15288/GB 15287-2008 |
Features:
-- The products have high attenuation, based on chokes with high
saturation resistance and excellent thermal behavior
-- (R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and hipot testing.
-- There are a variety of parts and combinations to meet different
customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- Portable electrical and electronic equipment
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
-- Single-phase power supply,switch-mode power supply
Rule of Nomination:
YB 11 C9 - 10A - W/Q ( R5 ) C9/C11: one Fuse
¦ ¦ ¦ ¦ ¦ ¦ C10/12: Two Fuses
circuit case current W: wire lead optional
Q: fast-on
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:

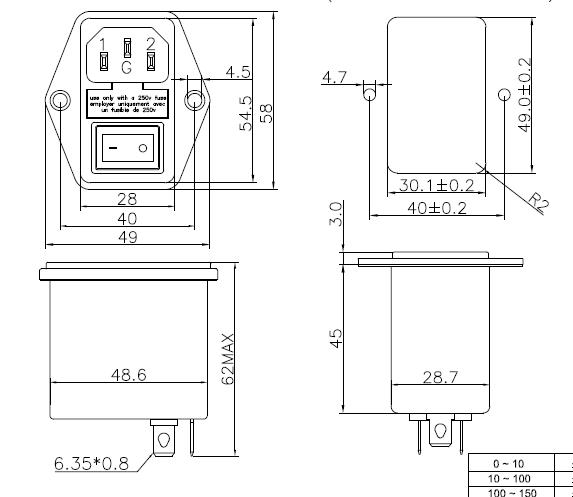

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Factory Photos:
Exhibitions:
Certifications Approval:
Our Advantages:
- We are a listed company. NO:667344, brand guarantee, reliable quality
- We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH
certification to ensure the product quality
- We have the relevant professional experimental equipment, so we can
provide a free diagnostic conducting test for you.
- Free EMC rectification technical support and provide free test
samples
- Automation technology, scale production, excellent price
- Good service, fast delivery!
- After-sales service: free replacement within three months, free maintenance within 6
years, life-long maintenance
- Cooperate with the top scientific research laboratory
- We have a professional R&D team
FAQ:
1. Have you got any certificate approval for your products?
A: Yes, we've got UL, TUV, CE, CQC, ROHS, ENEC, REACH, CE, etc. We
are an ISO9001 manufacturer.
2. Are OEM and ODM available?
* Yes, We supply OEM or ODM services if their MOQ meets that of as
OEM customers.
3: What are your main products?
A: Our main products are EMI Filters, shielding RFI filter,
single-phase filter, three-phase noise filter, household appliance
filter, medical applied filter, electronic product filter,
inverter/converter filter, etc.
4. How about your product warranty?
* We offer free replacement within three months, free maintenance
within six years, life-long maintenance!
5. What service do you apply before sale?
A: We supply free samples for your testing, and free EMC
rectification technical services according to the customer
requirement.
6. Can you custom products as customer's requirements?
* Yes, we can custom products for you, if you have a large quantity
demand, our R&D team can also develop products for you.
