Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A
emi filter 10A low pass electrical and electronic equipment
Description
Performance driven EMI filters are used to regulate and protect
sensitive electronics from interference. These EMI filters not only
drive technology, but are also used in other fields such as
telecommunications. EMI filters protect all kinds of electrical
apparatus, as all electrical and electronic appliances, equipment
and systems have the potential to disturb other ones. Therefore,
this must prevent such electromagnetic interference to a level
which is acceptable to it’s surroundings. Therefore the noise
emission must be low.
Feature
Product name: AC Socket EMI Filter
Rated voltage: AC 250V, 50/60Hz
Rated current: 10A
Number of positions: 3
Mounting type: Panel mount, flange; through hole
Termination: Solder quick connect
Material: Metal & plastic
Specification Of EMI Power Filter
Item | single-phase EMI FILTER | Rated Current | 10A |
Model | YB11E1-10A-Q | Environmental Temperature | 40°C |
Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
Package Type | Surface Mount | Operating Frequency | 50/60HZ |
Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
Insertion Loss | 50~100dB | Line to Ground | 2250VDC |
Rated Voltage | 250/115VAC | Maximum Leakage Current | 220VAC/60HZ 3-10mA Max |
Flammability corresponding to | UL 94V-0 | MOQ | Negotiable |
Lead Time | 7-15 weekday | Price | Negotiable |
Applications:
Hybrid vehicles; fuel cell vehicles; 42V power supply DC/DC
converters; electric vehicle chargers; transmitters and receivers
of sensors, etc.Electronic data processing and office equipment:
personal computers; printers; computer peripherals; fax machines;
copiers ;Monitor; plotter; computer host drive and control
equipment: frequency converter; inverter
Advantages:
1. Customized:We have a professional R&D team; our aims is we
won't let customers
spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance,
reliable quality, and
we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research
laboratories to provide free EMC rectification technical support,
samples; and free conduction test.
4. Scale production:Automation technology, scale production, great
price,excellent, service, fast delivery! Free replacement within
three months, free maintenance within six years, life-long
maintenance!
Naming Rule:
YB 11-------E1----------10A-------------S/T/B
| | | |
circuit case current connection
S: Screw
T: Terminal Block
B: Copper bar
Electrical Schematic

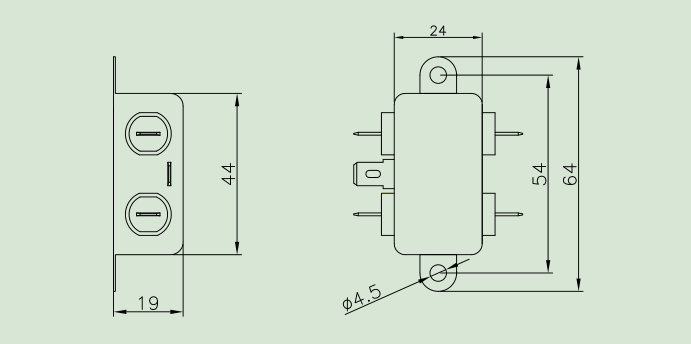

Drawing:
Factory Picture
Our Services
Before-sale | After-sale |
1. All inquires will be replied with 8 hours. 7D/24H service,
please feel free to contact us with Email/TM/Skype | 1. All EMI filters will be tested and adjusted before shipping. |
2. Strong technical team and professional sales. | 2. After receiving the products, any questions we will try our best
to solve. |
3. Customized packaging is acceptable. | 3. Free replacement within three months, free maintenance within
six years, life-long maintenance! |
4. We supply free samples and EMC technical rectification services |
|
FAQ
1. What can you supply?
A: We can supply custom EMI Power Filter, EMI EMC Filter and so on,
all kinds of EMI Filter.
2. Are OEM and ODM available?
* Yes, they are. As a professional EMI Power Filter manufacturer,
we offer OEM and ODM service.
Q: What are your main products?
A: Our main products are EMI Power Filter.
4. How about your product warranty?
* We offer one-year warranty upon delivery.
5. How about the aftersales support?
* We will offer on-time response for online inquiries from overseas
users. Please feel free to tact us by email, Ali-Trade, WhatsApp,
WeChat and SKYPE.
