Single Phase 50A 250V Dual Stage Emi Filter Enhanced Filter
YB22D1 single-phase dual-stage EMI filter
Description of EMI FILTER
1, Designed for increased requirements
2, 2-stage line filter with increased attenuation
3, Excellent differential and common-mode attenuation
Feature of EMC FILTER
• YB22 has designed two-stage filtering, with good differential and
common-mode attenuation.
• Various terminal options allow you to select.
• There are a variety of parts and combinations to meet different
customer's EMC tests
• Customized products according to customer's requirements
Specification of noisy filter
Item | EMI FILTER | Rated Current | 1A, 3A, 6A, 10A, 15A |
Model | YB22D1 | Environmental Temperature | 40°C |
Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
Package Type | Surface Mount | Operating Frequency | DC to 400Hz |
Nominal Center Frequency | 10K-30MHZ | L to N | 1450VDC |
Insertion Loss | 50-90db | L/N-G | 2000/2250VDC |
Rated Voltage | 112/250VAC,50/60HZ | Climatic category | -25°C~+85°C(25/85/21) |
Flammability corresponding to | UL 94V-0 | MOQ | Negotiable |
Lead Time | 3-5 days | Price | Negotiable |
Application
1. Electrical and electronic equipment
2. Medical equipment
3. Industrial applications
4. Building automation
5. Office automation and datacom equipment
Advantage
1. After years of efforts of the company's personnel, products
successively obtained the cUL,
TUV, CQC, CE, ROSH certifications.
2. We have a professional R&D team; our aim is we won't let
customers spend any extra money!
3. National high-tech enterprises, brand assurance, reliable
quality, and we have the relevant
product certifications.
4. We cooperate with top scientific research laboratories to
provide free EMC rectification technical
support, samples; and free conduction test.
5. Automation technology, scale production, great price, excellent,
service, fast delivery! Free replacement within three months, free
maintenance within six years, life-long maintenance!
Naming Rule
YB 22-------D1---------3A-------------W/Q
| | | |
circuit case current connection
W: wire-lead
Q: fast-on terminal
Electrical Schematic

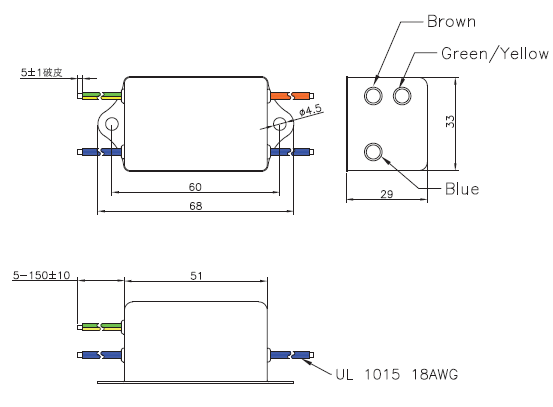

Mechanical Dimension
Factory Picture
Our Services
Before-sale | After-sale |
1. All inquires will be replied with 8 hours. 7D/24H service,
please feel free to contact us with Email/TM/Skype | 1. All EMI filters will be tested and adjusted before shipping. |
2. Strong technical team and professional sales. | 2. After receiving the products, any questions we will try our best
to solve. |
3. Customized packaging is acceptable. | 3. Free replacement within three months, free maintenance within
six years, life-long maintenance! |
4. We supply free samples and EMC technical rectification services |
|
