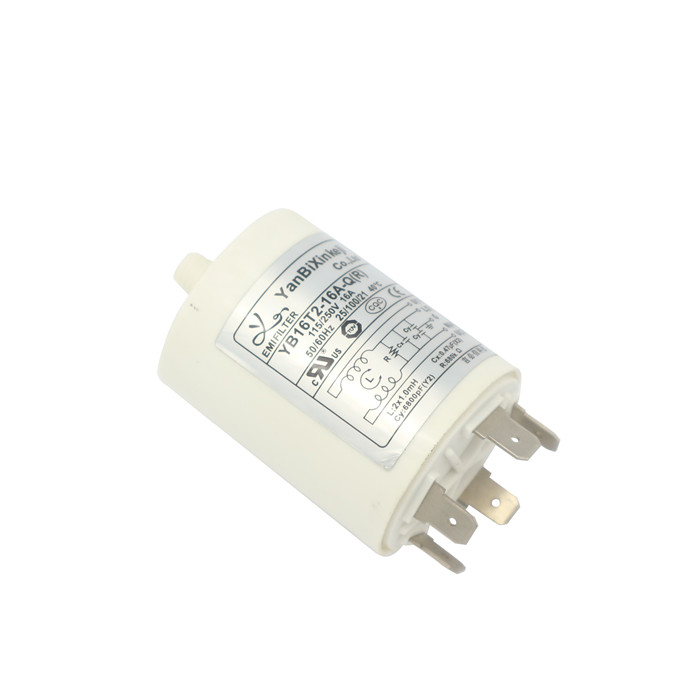

Single Phase Low Pass Emi Suppression Filter White Plastic Material
White plastic single phase low pass emi suppression filter for
fridge and washing machines
Description
The role of the filter is to reduce power interference, and power
interference can be divided into two categories: normal mode and
common mode.Normal mode is the noise between two sets of input
power lines, this kind of noise is usually generated when shutting
down and starting up. The common mode refers to the interference
caused by poor grounding of equipment, or radio and refrigerator
motor electromagnetic, fluorescent energy-saving lamp ballast,
washing machine, fan thyristor speed control, etc.
Feature
It is a device used to eliminate interference and noise, filtering
the input or output to obtain pure direct current. The circuit that
effectively filters out the frequency point of a specific frequency
or the frequency other than the frequency point is a filter, and
its function is to obtain a specific frequency or eliminate a
specific frequency
Specification
Item | EMI FILTER | Rated Current | 16A |
Model | YB16T2-16A-Q(R) | Environmental Temperature | 40°C |
Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
Package Type | Surface Mount | Operating Frequency | 50/60HZ |
Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
Insertion Loss | 50~100dB | Line to Ground | 2250VDC |
Rated Voltage | 115/250VAC | Maximum Leakage Current | 220VAC/50-60HZ 3-10mA Max |
Flammability corresponding to | UL 94V-0 | MOQ | Negotiable |
Lead Time | 3-7 days | Price | Negotiable |
Advantage
The filter is a frequency selection device that can pass specific
frequency components in the signal while greatly attenuating other
frequency components. Using the frequency selection function of the
filter, interference noise can be filtered out or spectrum analysis
can be performed. In other words, any device or system that can
pass specific frequency components in a signal and greatly
attenuate or suppress other frequency components is called a
filter.
Naming Rule
YB 16-------T2---------16A-------------S/T/B
| | | |
circuit case current connection
S: Screw
T: Terminal Block
B: Copper bar
Electrical Schematic
Mechanical Dimension
Factory Picture
