Two Stage Power Line Filter 115V 250V Single Phase EMI Filter Metal
Case
YB22D1-3A-Q Power Line Filter:
YB22D1-3A-Q is the Dual-Stage Single Phase Filter. According to different equipment to choose the appropriate output
mode, its connection mode can be selected fast-on terminal, M4
screw, electronic wire. The maximum rated current up to 50 amps. Designed with both common
mode and differential mode performing high noise suppression.
| Item | Power line Filter |
| Model | EMI Filter YB22D1-3A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 50pcs |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply
may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different
customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Naming Rule:
| YB | 22 | D1 | - | 3A | - | Q |
| ∣ | ∣ | ∣ | | ∣ | | ∣ |
| Our brand | Circuit | Dimension | | Current | | Output Connection |
| 22:22 circuit | D1 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | | 10A :10 amp | | W:wire |
| | | | 20A :20 amp | | S:M4 screw |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB22D1-6A | D1 | 6 | Fast-on terminal |
| YB22D1-10A | D1 | 10 |
| YB22D1-15A | D1 | 15 | Wire |
| YB22D1-20A | D1 | 20 |
| YB22D1-30A | D1 | 30 | M4 Screw |
| YB22D1-40A | D1 | 40 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
YB22D1-3A-Q EMI Filter Picture:
Electrical Schematic:

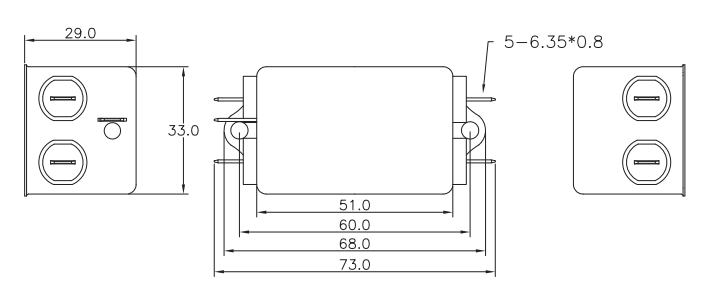

Mechanical Dimension(Unit: mm)
Our Advantages:
1. National high-tech enterprises, brand assurance, reliable
quality, after years of efforts of the company's personnel,
products successively obtained the cUL, TUV, CQC, CE, ROSH
certifications.
2. We have a professional R&D team; our aim is we won't let
customers spend any extra money!
3. We cooperate with top scientific research laboratories to
provide free EMC rectification technical support, samples; and free
conduction test.
4. Automation technology, scale production, great price, excellent,
service, fast delivery! We supply free samples and free
replacement.
5. After-sale: within three months, free maintenance within six
years, life-long maintenance!
