Refrigerator Low Pass UL 4A 250VAC Electronic Noise Filter

Yanbixin 250V 4A Plastic Power Supply Noise Filter For White Household Appliance

1. Washing machine

2. Refrigerator

3. Vending machine

4. Dishwasher and other white goods

Characteristics

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A. @115VAC............................................................................................... 16A RMS Max.

B. @250VAC............................................................................................... 16A RMS Max.

(3) Operating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 1mA Max.

B. 250VAC/50Hz...........................................................................................2mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 500VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃

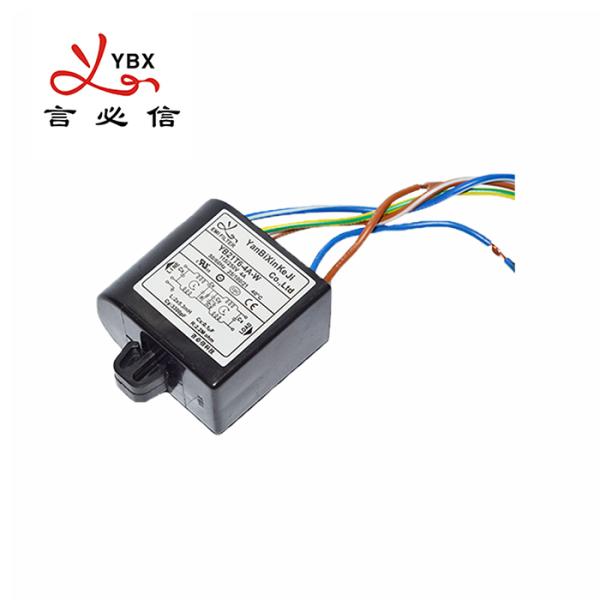

Product Picture

Physical Dimensions of EMI filter:

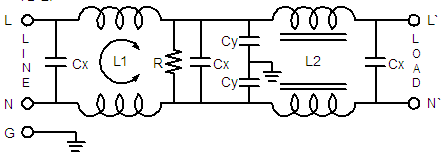

Electrical Schematic

Model No.

Rated Current @40°C

Terminal Options

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB24T5-1A

1A

Q

-

W

<0.8mA

Fig.1

115/250V

50/60Hz

YB24T5-4A

4A

Q

-

W

Fig.1

YB24T5-10A

10A

Q

-

W

Fig.1

YB27T6-1A

1A

Q

-

W

Fig.1

YB27T6-4A

4A

Q

-

W

Fig.1

YB27T6-10A

10A

Q

-

W

Fig.1

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

-------- Common mode

10A

-------- differential mode

16A
