    F Series High Performance EMI Filter 10A Single Phase Filter For Manipulator Equipment

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB12F1-20A-S
    Certification : cUL,TUV,CQC,CE,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    F Series High Performance EMI Filter 10A Single Phase Filter For Manipulator Equipment

    F Series High Performance EMI Filter 10A Single Phase Filter For Manipulator Equipment


    Features:


    1. YB-F-series.


    2. Rated currents from 1 to 200A


    3. General purpose/high performance/excellent performance filtering


    4. Optional medical versions((R5) type)


    Typical Applications:


    -- Portable electrical and electronic equipment


    -- Medical equipment


    -- Datacom equipment


    -- Office automation equipment


    Technical Specification:


    Item

    IEC Filter

    Model

    IEC Filter YB-B

    Transfer Function

    Low Pass

    Package Type

    Surface Mount

    Nominal Center Frequency

    10K-30MHZ

    Insertion Loss

    60~90dB

    Input Impedance

    50Ω

    Rated Voltage

    115V/250V

    Rated Current

    1~10A

    Environmental Temperature

    40°C

    Temperature Range

    25 / 085 / 21

    Operating Frequency

    50/60HZ

    Line to Line

    500VDC

    Line to Ground

    2250VDC

    Maximum Leakage Current

    250VAC/60HZ 0.8mA Max

    MOQ

    100pcs

    Price

    Negotiable

    Lead Time

    5~15 weekday


    Rule of Nomination:


    YB------12--------F1--------10A-----------S ------------( R 5 )

    ¦ ¦ ¦ ¦ ¦ ¦ ¦

    circuit case current connection optional


    Tabulates:


    Model No.

    Rated Current
    @40°C

    Terminal Options*

    Bleeder resistor(optional)

    Leakage current 250V/50Hz

    Electrical Schematic

    Rated Voltage(V)

    Operating Frequency(Hz)



    YB12F1-30A

    30A

    -

    S

    -

    T

    -

    <0.8mA

    Fig.1

    115/250V

    50/60Hz

    YB12F1-40A

    40A

    -

    S

    -

    T

    -

    Fig.1

    YB12F1-50A

    50A

    -

    S

    -

    T

    -

    Fig.1

    YB12F2-30A

    30A

    -

    S

    -

    T

    -

    Fig.1

    YB12F2-40A

    40A

    -

    S

    -

    T

    -

    Fig.1

    YB12F2-50A

    50A

    -

    S

    -

    T

    -

    Fig.1


    Medical type Tabulates:


    Model No.

    Rated Current
    @40°C

    Terminal Options

    Bleeder resistor(optional)R(MΩ)

    Medical equipment
    5

    Leakage current 250V/50Hz

    Electrical Schematic

    Rated Voltage(V)

    Operating Frequency(Hz)


    YB12F1-30A-x(5)

    30A

    -

    S

    -

    T

    1

    5

    <5μA

    Fig.2

    115/250V

    50/60Hz

    YB12F1-40A-x(5)

    40A

    -

    S

    -

    T

    1

    5

    Fig.2

    YB12F1-50A-x(5)

    50A

    -

    S

    -

    T

    1

    5

    Fig.2

    YB12F2-30A-x(5)

    30A

    -

    S

    -

    T

    1

    5

    Fig.2

    YB12F2-40A-x(5)

    40A

    -

    S

    -

    T

    1

    5

    Fig.2

    YB12F2-50A-x(5)

    50A

    -

    S

    -

    T

    1

    5

    Fig.2

    *Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awgT: Terminal block


    Electrical Schematic:


    Fig.1

    Standard type


    Fig.2

    R5 type

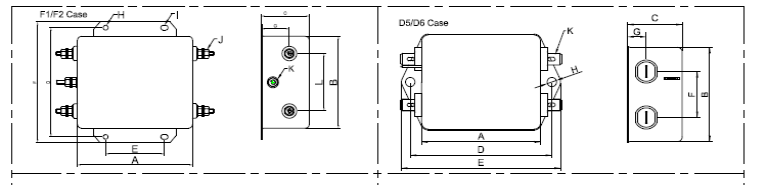

    Mechanical Dimension(Unit: mm)



    Case

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    F1

    72

    65

    39

    75

    45

    85

    22

    4.2

    4.2*6.2

    M4/M6

    M4

    35

    F2

    98

    80

    40

    95

    50

    105

    24

    4.2

    4.2*6.2

    M4/M6

    M4

    50

    Tolerances
    公差

    ±1

    ±1

    ±1

    ±0.15

    ±1

    ±0.5

    ±0.5

    ±0.15

    ±0.15


    ±0.15

    ±2


    Insertion loss table(In 50ohm system according IEC/CISPR No.17)


    F Series High Performance EMI Filter 10A Single Phase Filter For Manipulator Equipment
