EMI RFI Power Low Pass Inverter Emi Filter for Most Brands of Converters

Features:

-- With a three-stage filtering design, special materials can guarantee the high impedance characteristics in wide frequency range;

-- Assure the smooth operation of other electronic devices in the vicinity, and solve the interference problems of inverter;

-- Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection;

-- Customized products according to customer's requirements

Typical Applications:

1. Suitable for most brands of inverters

2. Servo motor

3. UPS/SMPS

4. Industrial electronic equipment by using frequency conversion principle

Rule of Nomination:

YX 84 G1 - 3A - Q

¦ ¦ ¦ ¦

circuit case current connection

Tabulates:

T: Terminal block

Electrical schematic:

Fig.1

Mechanical Dimension(Unit: mm)

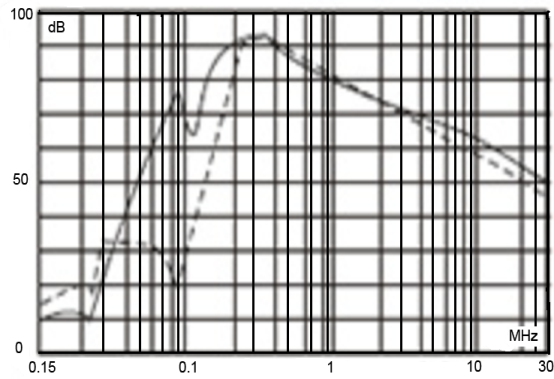

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

6/10A 20A

30A 50A

100A 200A
