Network AC Power Noise Filter / Low Pass EMI EMC Filter Metal Case

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB41F3-30A-S
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Delivery Time :	20-25 days

Add to Cart

Product Details
Company Profile

Network AC Power Noise Filter / Low Pass EMI EMC Filter Metal Case

High Quality Emi Power Network Low Pass Noise Line Filter For Emc

Technical Specification:

Item	Power line Filter
Model	Power line Filter YB-D/F
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	50pcs
Price	USD3~21.8/Meter
Lead Time	5~15 weekday

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Office automation and datacom equipment

Rule of Nomination:

YB 24 E4 - 10A - Q ( 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB41D3-1A

<1.0mA

Fig.1

115/250V

50/60Hz

YB41D3-2A

Fig.1

YB41D4-3A

Fig.1

YB41D4-4A

Fig.1

YB41D4-6A

Fig.1

YB41D5-8A

Fig.1

YB41D5-10A

10A

Fig.1

YB41D5-15A

15A

Fig.1

YB41D6-10A

10A

Fig.1

YB41D6-15A

15A

Fig.1

YB41F2-20A

20A

Fig.1

YB41F2-25A

25A

Fig.1

YB41F3-30A

30A

Fig.1

Medical Type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Medical equipment
5

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB41D3-1A-x(5)

<5μA

Fig.2

115/250V

50/60Hz

YB41D3-2A-x(5)

Fig.2

YB41D4-3A-x(5)

Fig.2

YB41D4-4A-x(5)

Fig.2

YB41D4-6A-x(5)

Fig.2

YB41D5-8A-x(5)

Fig.2

YB41D5-10A-x(5)

10A

Fig.2

YB41D5-15A-x(5)

15A

Fig.2

YB41D6-10A-x(5)

10A

Fig.2

YB41D6-15A-x(5)

15A

Fig.2

YB41F2-20A-x(5)

20A

Fig.2

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Electrical schematic:

Fig.1

Fig.2

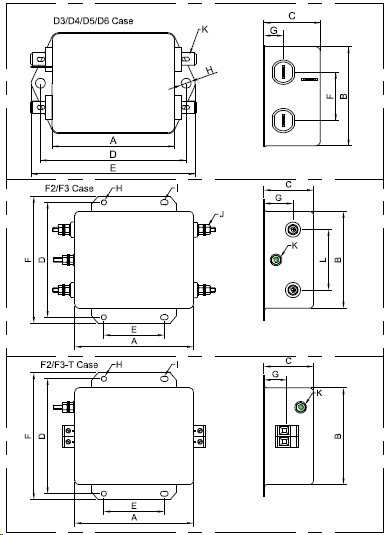

Mechanical Dimension(Unit: mm)

Case	D3	D4	D5	D6	F2	F3	Tolerances

A	63	63	73	94	98	150	±1

B	51	51	56	55	80	105	±1

C	29	38	45	45	41	60	±1

D	75	75	87	104	95	120	±0.15

E	85	85	98	118	50	80	±1

F	25	27	30	30	50	60	±0.5

G	10	15.5	16	15	24	35	±0.5

H	5	4.5	4.5	4.5*6	4.2	4*6	±0.15

I					4.2*6.2	4*6	±0.15

J					M4/M6	M4/M6

K	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	±0.15

L					50	60	±2

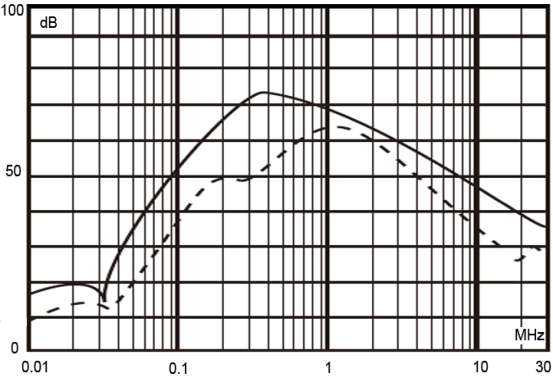

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

10A 15A
