YB11B2 IEC Plug In EMI Filter 0.8mA low Leakage Current Noise
Filter With Fuse
YB11B2 IEC Inlte Filter:
YB11B2-6A-Q is a IEC Inlet Filter with Fuse. It is a compact and easy to install filter that plugs directly into
an AC power outlet. Our design standards are in accordance with IEC60601. IEC Standard inlets allow the use of one common input socket to
accomodate differing international power cord designs. Using the IEC input ensures that regardless what electrical system
it is, there is a standard power cord to fit.
Features Of Plug-in EMI Filter:
1. The products have high attenuation, based on chokes with high
saturation resistance and excellent thermal behavior
2. (R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and hipot testing.
3. Compact size: IEC plug-in EMI filters are small and compact,
which makes them easy to install and use in a variety of
applications.
4. Easy installation: IEC plug-in EMI filters are easy to install
and require no additional wiring or modifications to the system.
They simply plug into the AC power socket and provide immediate EMI filtering.
IEC Inlet Filter Applications:
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
YB11A4-10A-W Specification:
| Product | YB-B IEC EMI Filter With Fuse | Rated Current | 1~10A |
| Model | YB11B2-6A-Q | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 10~30dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 115VAC/50HZ 0.4mA Max
250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 100pcs |
Naming Rule:
| YB | 11 | B2 | - | 6A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| 11:11 circuit | B2 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | | 8A :8 amp | | W:wire |
| | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
IEC Inlet Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11B2 | B2 | 1 | Fast-on terminal |
| YB11B2 | B2 | 3 |
| YB11B2 | B2 | 6 | Wire |
| YB11B2 | B2 | 8 |
| YB11B2 | B2 | 10 | Solder Lug Terminals |

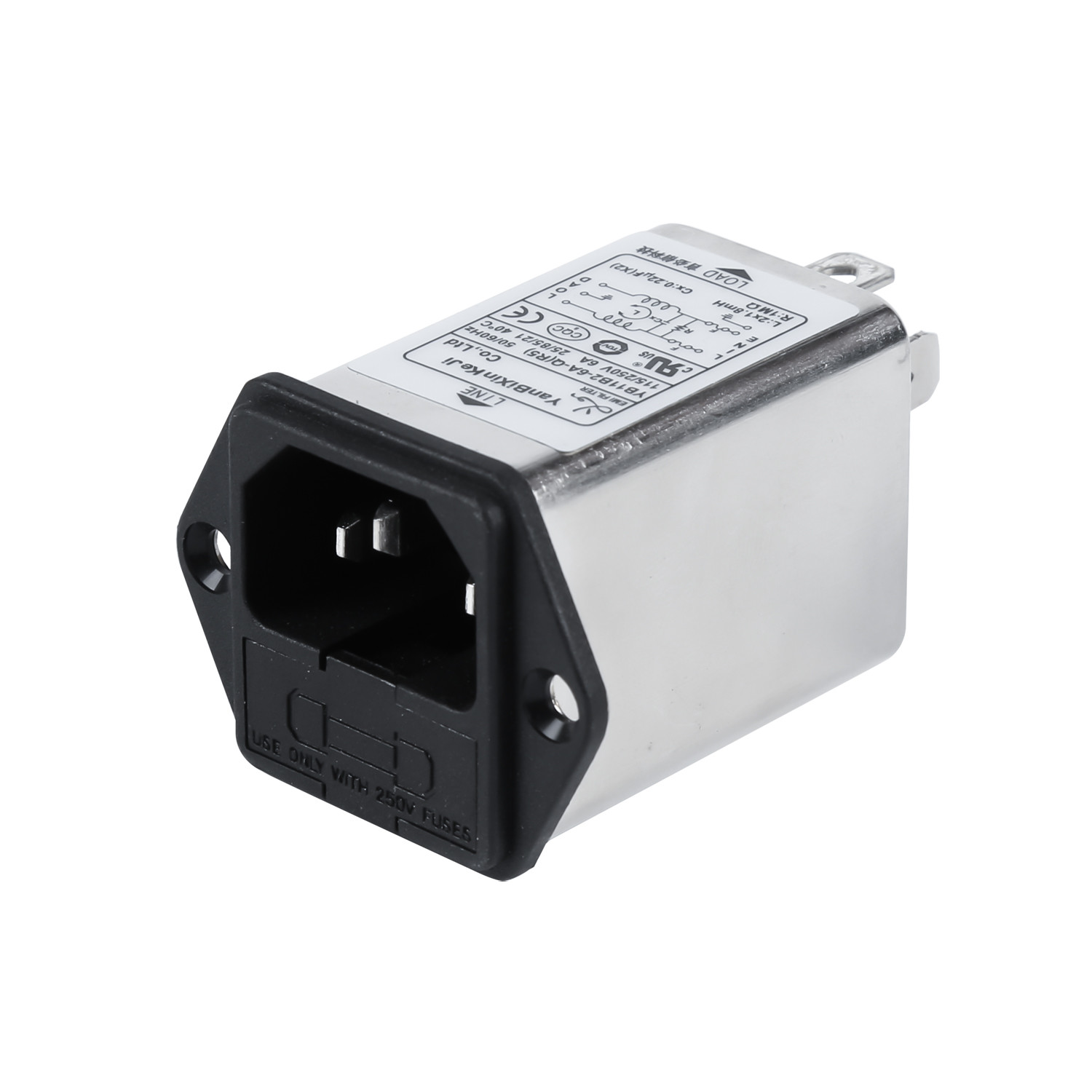

YB11B2-6A-Q Product Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
Insertion Loss:
Production Equipment
During the production of EMI filters, we use many automated
equipments, such as: long leg tin dipping machine, wave soldering,
automatic flat labelling machine, etc., which greatly improves our
production efficiency and guarantees the delivery time for our
customers.
