IEC Inlet Filters For Both Susceptibility Control and Emission Compliance

Yanbixin"s multi-function inlet filters can provide one electromagnetic interference solution for a variety of power entry needs. Each series supports several different configurations to suit the market requirements. Our parts ensure both susceptibility control and emission compliance.

YB11A4-10A-S is the EMI power inlet filter,its input uses IEC/EN60601-1 socket, the output uses the solder terminal, has good filtering performance and safety, the applicable voltage is 110V-250V, current optional range 1A-10A.

Features Of EMI Power Inlet Filter:

1. Excellent performance/compact structure

2. Optional medical versions((R5) type)

3. Quick connect(6.35*0.8mm),solder or wire

4. High performance and high attenuation power filters with IEC 320 socket

5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.

6. There are a variety of parts and combinations to meet different customer's EMC tests.

EMI Power Inlet Filter Application:

1. IT

2. Communication equipment

3. Instruments

4. Small household tools

5. Test and measurement equipment

6. Other need to connect the standard, plug electronic equipment

Technical Specification:

Naming Rule:

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Filter Selection Table:

YB11A4-10A-S Product Picture:

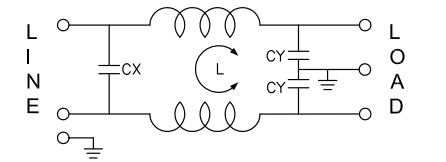

Electrical Schematic:

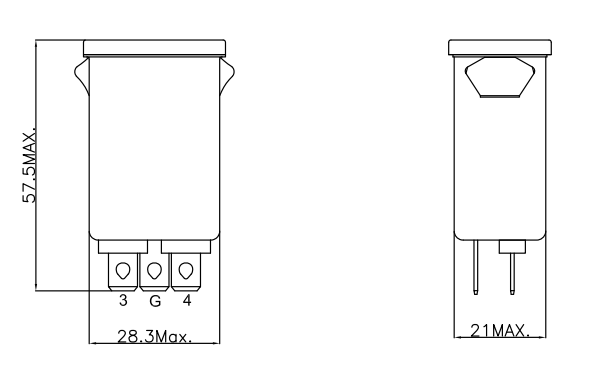

Mechanical Dimension(Unit: mm)
