Industrial Grade Inverter EMI Filter High Voltage Three Phase Four Wire Power Filter

Industrial Grade Inverter EMI Filter High Voltage Three Phase Power Filter

Introduction Of Three Phase Filter:

Three Phase Filter is a kind of EMI filter. It is often used in servo motor,variable frequency driver and three phase power systems. Its working principle is to allow the fundamental frequency of three phase power supply to pass through, while attenuating or blocking high frequency signals.

Feature Of Three Phase Filter:

1.Used as a main input filter, YX92 filters can keep the system reliable by restrain the conducted interference.

2.High current capacity: Three phase filter are designed to handle high current levels typically found in three phase power systems.

3.High attenuation: Three phase filter are designed to provide high levels of attenuation for unwanted high frequency signals, while allowing the fundamental frequency of the three phase power to pass through.

Typical Applications:

1. Mainframe computer systems

2. Servo motor

3. UPS/SMPS

4. Industrial electronic equipment by using frequency conversion principle

YX92G6-150A-T Specification:

Item	Three phase EMI filter	Rated Current	1A~200A
Model	YB21D4-15A-Q	Rated Voltage	250V/440V
Operating Frequency	50/60HZ	Line to Line	1450VDC
Output Module	Terminal Block	Line to Ground	2250VDC
Transfer Function	Low Pass	Leakage Current	115VAC/50HZ 0.4mA Max 250VAC/60HZ 0.8mA Max
Transfer Function	Low Pass	Leakage Current	115VAC/50HZ 0.4mA Max 250VAC/60HZ 0.8mA Max
Package Type	Surface Mount	Environmental Temperature	40℃
Nominal Center Frequency	150K-30MHZ	Input Impedance	50Ω
Insertion Loss	30~100dB	Lead Time	5~15 weekday

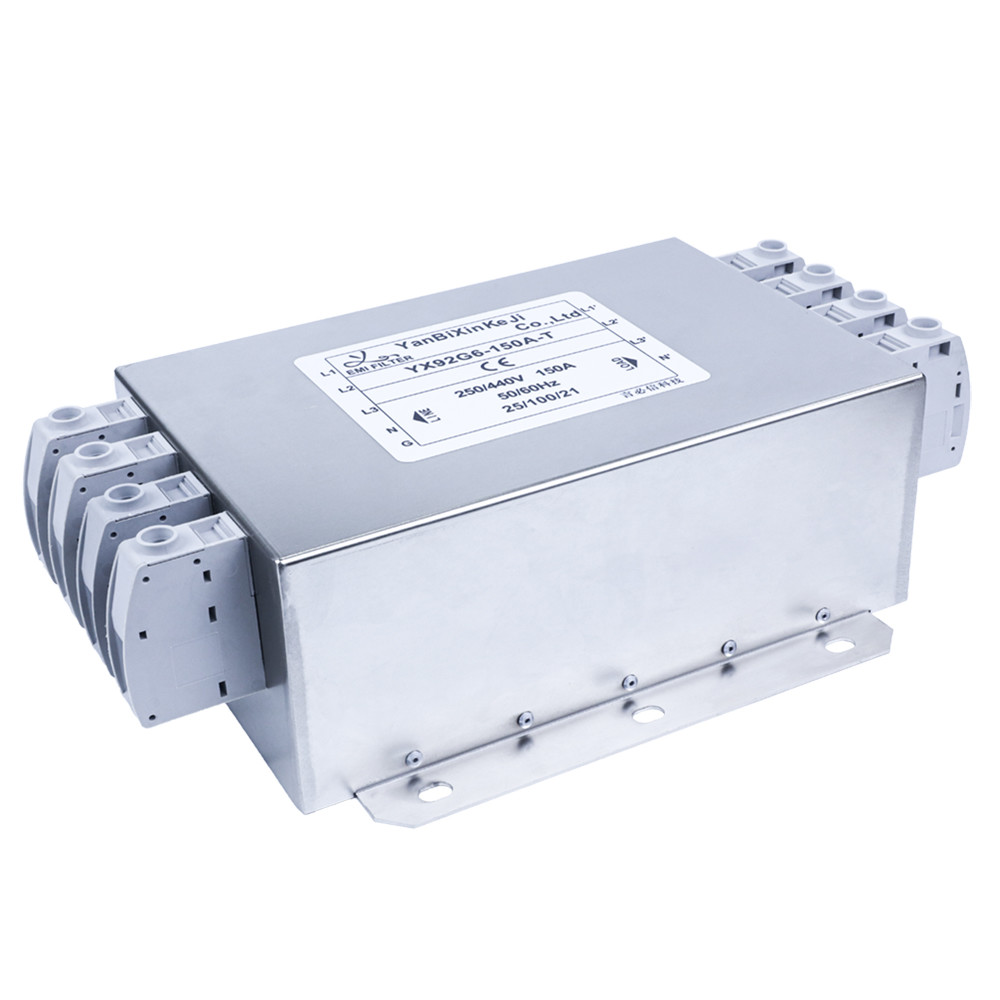

YX92G6-150A-T Picture:

Industrial Grade Inverter EMI Filter High Voltage Three Phase Four Wire Power Filter

Rule of Nomination:

YX----92-------G2--------150A------------------T

¦ ¦ ¦ ¦

circuit case current connection

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YX92G1-3A

<5.0mA

Fig.1

250/440V

50/60Hz

YX92G1-6A

Fig.1

YX92G1-10A

10A

Fig.1

YX92G2-15A

15A

Fig.1

YX92G2-20A

20A

Fig.1

YX92G2-25A

25A

Fig.1

YX92G2-30A

30A

Fig.1

YX92G3-35A

35A

<7.0mA

Fig.1

YX92G5-50A

50A

Fig.1

YX92G5-60A

60A

Fig.1

YX92G5-80A

80A

<10.0mA

Fig.1

YX92G4-100A

100A

Fig.1

YX92G6-150A

150A

<15.0mA

Fig.1

YX92G6-200A

200A

Fig.1

Electrical Schematic:

Fig.1

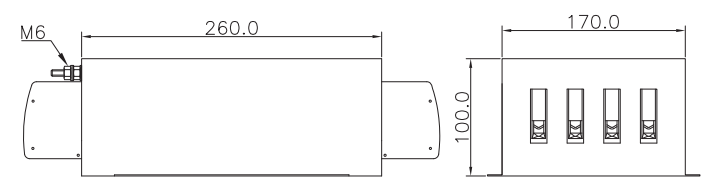

Mechanical Dimension(Unit: mm)

Insertion Loss (In 50ohm system according IEC/CISPR No.17)

Common mode -------- Differential mode

6/10A 20A

40A 80A

100A
