12V 24V 48V 80V 250V 50A AC EMC Noise Filtron Filter For Converter

Features:

-- Protection against interference of voltage

-- Advanced two-stage filtering circuits with highly saturating resistant toroidal inductors

-- Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection;

-- Customized products according to customer's requirements

Typical Applications:

1. Mainframe computer systems

2. Servo motor

3. UPS/SMPS

4. Industrial electronic equipment by using frequency conversion principle

Rule of Nomination:

YX 91 G1 - 3A - Q

¦ ¦ ¦ ¦

circuit case current connection

Tabulates:

Electrical schematic:

Fig.1

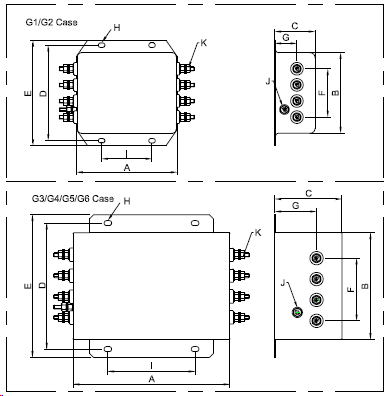

Mechanical Dimension(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

6/10A 20A

40A 80A

100A
