Three In One 1A 220V C7 IEC Inlet Filter Power Model Entry Filter With Socket, Switch And Fuse

C7 Power Enrty Module Filter:

YB11C7-1A-Q is the power entry module filter. It is a compact and easy to install filter that plugs directly into an AC power outlet. Our design standards are in accordance with IEC60601, and filters have passed the UL,CQC,CE,TUV certification. 3-in-1 with socket, switch and fuse.We can also customize filters to medical specifications to meet the requirements of ultra-low leakage current.

Features Of Three In One EMI Filter:

1. High performance and high attenuation power filters with IEC 320 socket

2. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior

3. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

4. There are a variety of parts and combinations to meet different customer's EMC tests

Application Of C7 Power Entry Module Filter:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

YB-C EMI Filter Specification:

Naming Rule:

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Filter Selection Table:

YB11C7-1A-Q EMI Filter Picture:

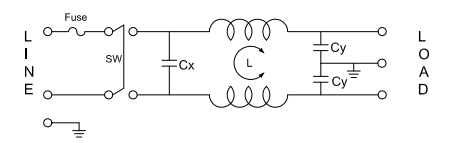

Electrical Schematic:

Mechanical Dimension(Unit: mm)

Insertion Loss:
