Yanbixin 2A 50Hz 60Hz Inline EMI Filter , 120V 250VAC DC Power Line EMI Filter

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB11B9-2A-Q
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 Piece/Pieces per Month
Delivery Time :	20-25 days

Add to Cart

Product Details
Company Profile

Yanbixin 2A 50Hz 60Hz Inline EMI Filter , 120V 250VAC DC Power Line EMI Filter

2A 50, 60Hz 120, 250VAC AC And DC Line Filter, Iec Power Inlet Connector Filter

Technical Specification:

Item	IEC Filter
Model	IEC Filter YB-C
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs
Price	USD1~5.8/Meter
Lead Time	5~15 weekday

Features:

1. Versions to 10A are available with fuse holder for one or two (5*20mm) fuses

2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

3. There are a variety of parts and combinations to meet different customer's EMC tests

4. Customized products according to customer's requirements

Typical Applications:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Rule of Nomination:

YB 11 B9 - 10A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

B9: one Fuse

B10: Two Fuses

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11B9-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11B9-2A

Fig.1

YB11B9-3A

Fig.1

YB11B9-4A

Fig.1

YB11B9-6A

Fig.1

YB11B9-8A

Fig.1

YB11B9-10A

10A

Fig.1

YB11B10-1A

Fig.1

YB11B10-2A

Fig.1

YB11B10-3A

Fig.1

YB11B10-4A

Fig.1

YB11B10-6A

Fig.1

YB11B10-8A

Fig.1

YB11B10-10A

10A

Fig.1

YB11B11-1A

Fig.1

YB11B11-2A

Fig.1

YB11B11-3A

Fig.1

YB11B11-4A

Fig.1

YB11B11-6A

Fig.1

YB11B11-8A

Fig.1

YB11B11-10A

10A

Fig.1

YB11B12-1A

Fig.1

YB11B12-2A

Fig.1

YB11B12-3A

Fig.1

YB11B12-4A

Fig.1

YB11B12-6A

Fig.1

YB11B12-8A

Fig.1

YB11B12-10A

10A

Fig.1

Medical type Tabulates:

Model No.	Rated Current @40°C	Terminal Options			Bleeder resistor (optional)	Medical equipment	G	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)


YB11B9-1A-x(R5)	1A	Q	S	-	1	5	-	<5μA	Fig.2	115/250V	50/60Hz
YB11B9-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11B9-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11B9-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11B9-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11B9-8A-x(R5)	8A	Q	S	-	1	5	-		Fig.2
YB11B9-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2
YB11B10-1A-x(R5)	1A	Q	S	-	1	5	-		Fig.2
YB11B10-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11B10-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11B10-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11B10-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11B10-8A-x(R5)	8A	Q	S	-	1	5	-		Fig.2
YB11B10-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2
YB11B11-1A-x(R5)	1A	Q	S	-	1	5	-		Fig.2
YB11B11-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11B11-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11B11-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11B11-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11B11-8A-x(R5)	8A	Q	S	-	1	5	-		Fig.2
YB11B11-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2
YB11B12-1A-x(R5)	1A	Q	S	-	1	5	-		Fig.2
YB11B12-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11B12-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11B12-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11B12-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11B12-8A-x(R5)	8A	Q	S	-	1	5	-		Fig.2
YB11B12-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Electrical schematic:

Fig.1

Fig.2

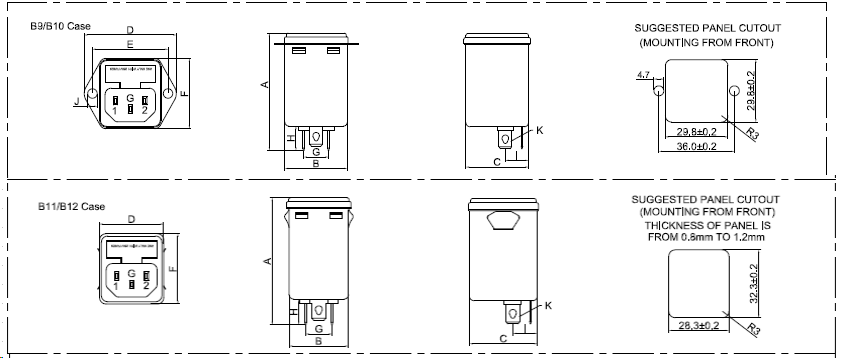

Mechanical Dimension(Unit: mm)

Case

B9/B10

33.5

12.5

4.5

6.35*0.8

B11/B12

30.5

33.5

12.5

6.35*0.8

Tolerances

±1

±0.15

±1

±0.5

±1

±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

6A 8A

10A

Product Tags:

inline power filter

emi emc filter
