    Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB11C12-8A-Q
    Certification : cUL, TUV, CQC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

    1A-8A 220VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

    Power Entry Module Filter:
    YB11C12-8A-Q is the three in one socket filter, includes socket, switch and fuse. The power input module compliant with IEC 60320-1 safety standard, plug and play, suitable for 110V/250V voltage, current selectable 1A, 3A, 6A, 8A, 10A.

    Features:

    1. High performance and high attenuation power filters with IEC 320 socket

    2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

    3. There are a variety of parts and combinations to meet different customer's EMC tests

    4. Customized products according to customer's requirements


    Typical Applications:

    -- Specially designed for LCD and PDP TV,medical applications,general electrical appliances

    -- Medical equipment

    -- Test and measurement equipment

    -- Small and medium-sized machines and household equipment


    YB11C12-8A-Q EMI Filter Specification:

    ItemPower Entry Module Filter
    ModelYB11C12-8A-Q
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency150KHz-30MHz
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage115V/250V
    Rated Current1~10A
    Environmental Temperature40°C
    Temperature Range25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line1450VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/60HZ 0.8mA Max
    MOQ

    100pcs


    Naming Rule:

    YB11C12-8A-Q
    |||||
    Single PhaseCircuitDimensionCurrentOutput Connection
    11:11 circuitC126A :6 ampQ:fast-on tab 250
    8A :8 ampW:wire
    10A :10 ampS:Solder Lug Terminals

    *Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg


    Filter Selection Table:

    Part No.CaseRated Currents (A)Output Connections
    YB11C12C121Fast-on terminal
    YB11C12C123
    YB11C12C126Wire
    YB11C12C128
    YB11C12C1210

    Solder Lug Terminals


    Electrical Schematic:

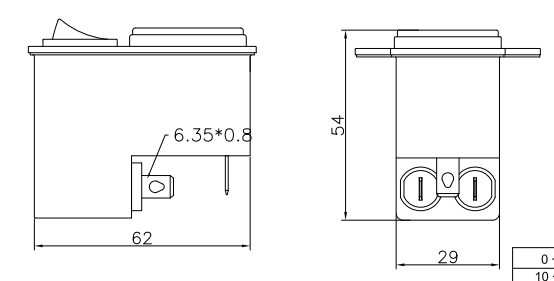

    Mechanical Dimension(Unit: mm)


    CaseABCDEFGHIJK
    C11/C1254622950406815.5113.76.35*0.8
    Tolerances±1±1±1±1±0.15±1±0.5±0.5±0.5±1±0.15

    YB11C12-8A-Q IEC Inlet Filter:

    Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch
