RFI Power Filter 440V 100A Terminal Block Output Three Phase Filter
For Automation Equipment
Terminal Block Three Phase Filter:
YX82G6-100A-T is the terminal block three phase filter, compact
structure, filters high current and voltage EMI. Applicable voltage
range 380V~520V, optional current range 3A~100A, the frequency
range of processing is 150KHz~30MHz.
Features Of Three Phase Filter:
1. Protection against interference of voltage
2. New connection terminal block, with safety protection
3. Available for Delta or WYE wiring with a variety of terminal
connection options
4. High voltage and current rating to cover high power applications
5. There are a variety of parts and combinations to meet different
customer's EMC tests
Typical Applications Of Three Phase EMI Filter:
1. For photovoltaic systems and industrial applications
2. Three-phase motor drives
3. UPS/SMPS
4. Industrial automation equipment
YX82G6 EMI Filter Specification:
| Item | Three Phase Filter |
| Model | YX82G6-100A-T |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 100Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX82G6 | G6 | 30 | M4 screw/M6 screw |
| YX82G6 | G6 | 50 |
| YX82G6 | G6 | 60 | Terminal block |
| YX82G6 | G6 | 80 |
| YX82G6 | G6 | 100 | Copper bar |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Naming Rule:
| YX | 82 | G6 | - | 100A | - | S |
| | | | | | | | | | | | |
| Three Phase | Circuit | Dimension | | Current | | Output Connection |
| 82:82 circuit | G6 | | 50A :50 amp | | S:M4 screw |
| | | | 80A :80 amp | | T:Terminal block |
| | | | 100A :100 amp | | B:Cooper bar |

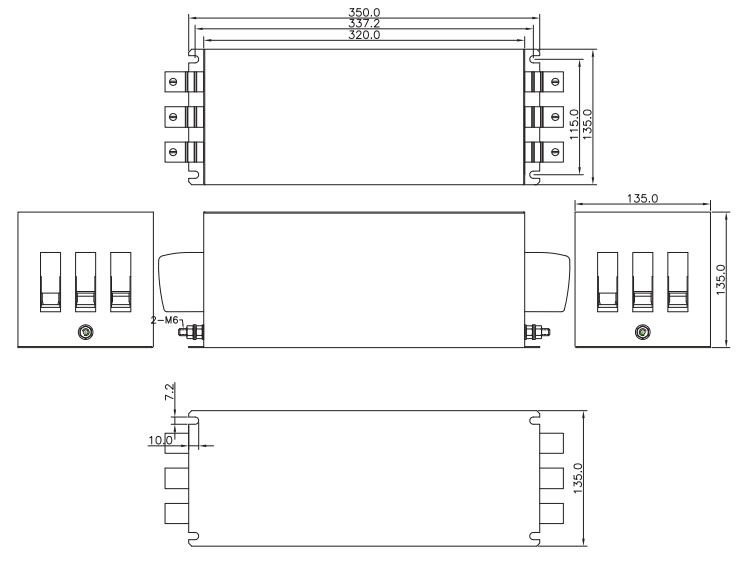

Mechanical Dimension(Unit: mm)
Electrical Schematic:

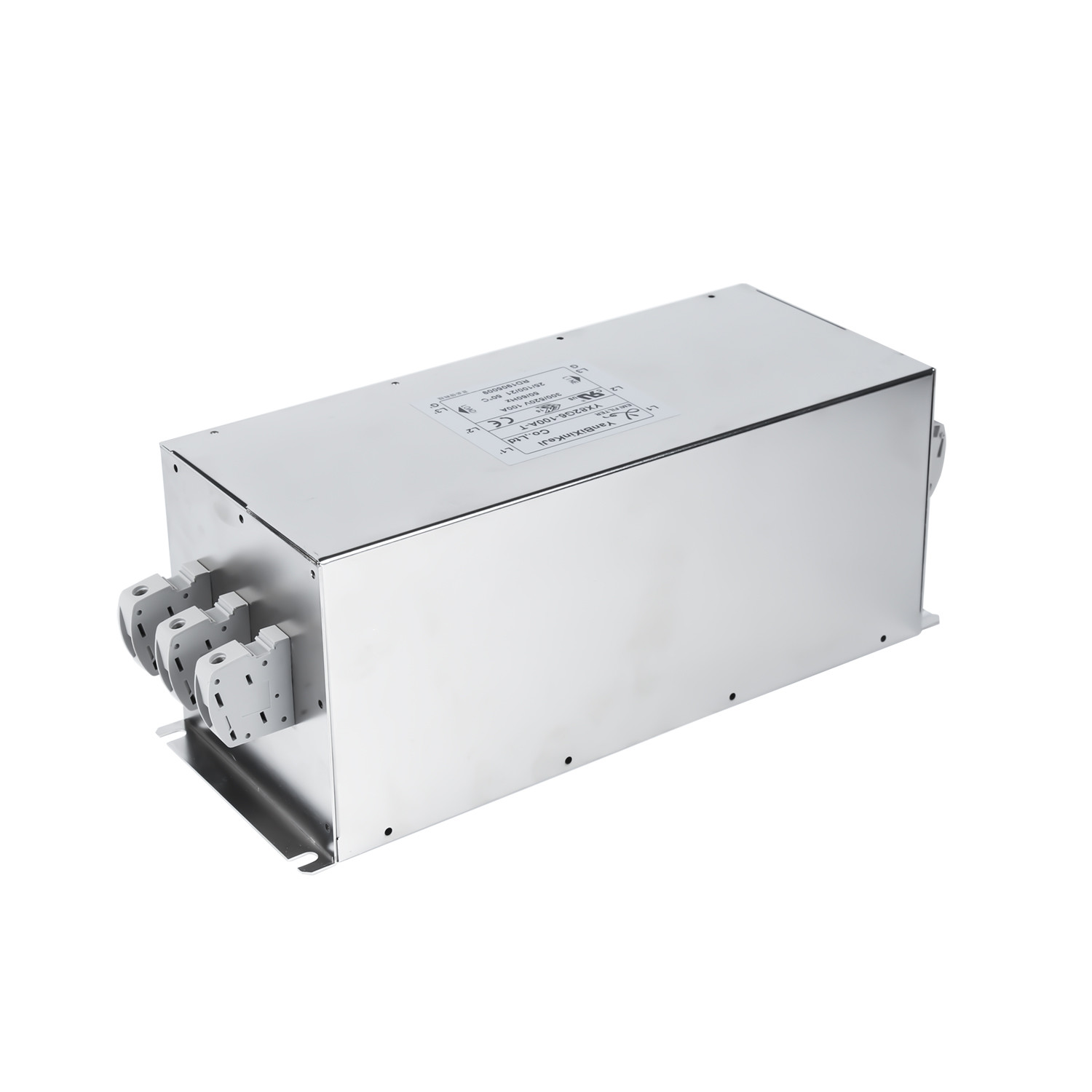

YX82G6-100A-T Three Phase Filter Picture:
