YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter

Product Categories

Shenzhen Yanbixin Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter

Ask Lasest Price
Brand Name :	YBX
Model Number :	YX83G2-20A-T
Certification :	cUL, ENEC, CE, ROHS, ISO
Price :	Negotiable
Supply Ability :	2000pcs per month
Delivery Time :	15-25 days
MOQ :	5pcs

Add to Cart

Product Details
Company Profile

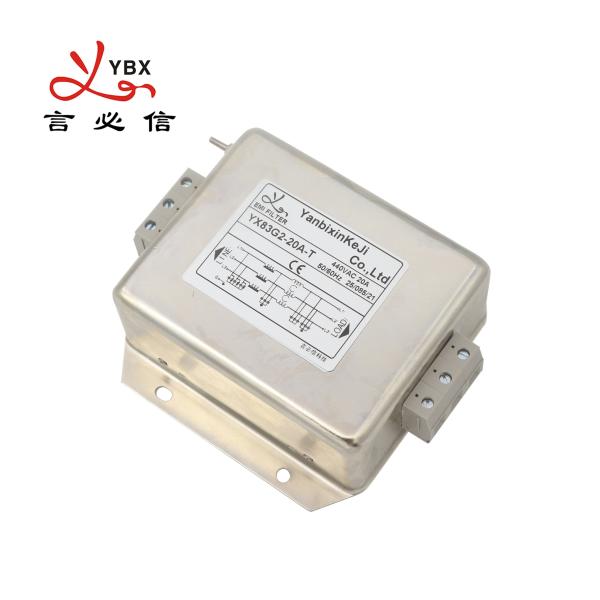

YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter

YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter

Technical Specification:

Item	Terminal Block Three Phase Filter
Model	YX83G2-20A-T
Transfer Function	High Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Rated Current	1A-100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max
MOQ	5pcs
Price	USD4.8~88/Meter
Lead Time	3~15 weekday for Three Phase RFI Filter

Features:

-- Protection against interference of voltage

-- Industry standard EMC solution for three-phase PDS filtering

-- Customized products according to customer's requirements.

Typical Applications:

1. For photovoltaic systems and industrial applications

2. Three-phase motor drives

3. Energy conversion devices (inverters, converters)

4. Industrial automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YX83G2-10A	G2	10	Fast-on terminal
YX83G2-20A	G2	20	Fast-on terminal
YX83G2-30A	G2	30	M4/M6/M8 Screw
YX83G2-40A	G2	40	M4/M6/M8 Screw
YX83G2-50A	G2	50	Terminal block

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YX82G1-1A

<1.0mA

Fig.1

250/440V

50/60Hz

YX82G1-3A

Fig.1

YX82G1-6A

Fig.1

YX82G2-10A

10A

Fig.1

YX82G2-15A

15A

Fig.1

YX82G2-20A

20A

Fig.1

YX82G3-10A

10A

<2.0mA

Fig.1

YX82G3-20A

20A

Fig.1

YX82G3-30A

30A

<5.0mA

Fig.1

YX82G5-30A

30A

Fig.1

YX82G5-50A

50A

Fig.1

YX82G5-60A

60A

<7.0mA

Fig.1

YX82G4-100A

100A

Fig.1

YX82G4-150A

150A

Fig.1

YX82G6-200A

200A

<10.0mA

Fig.1

Electrical Schematic:

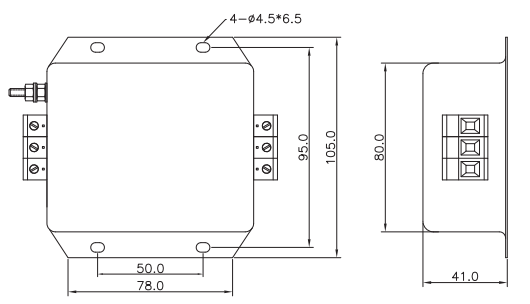

Mechanical Dimension(Unit: mm)

Case	A	B	C	D	E	F	G	H	I	J	K	L

G1	72	65	39	75	85	35	22		45	M4	M4/M6

G2	98	80	40	95	105	50	20	4.5*6.5	50	M4	M4/M6

G3	120	100	50	115	130	50	28	4*6	60	M4	M4/M6

G5	150	105	60	120	135	55	35	4*6	90	M6	M8

G6	260	170	100	196	220	85	65	8*12	172	M8	M10

Tolerances	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15

YX83G2-20A-T Three Phase Filter:

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter

Product Tags:

3 phase power line filter

3 phase emc filter

YX83 Terminal Block Connection EMI Filter 380V 20A Inverter Three Phase Filter
