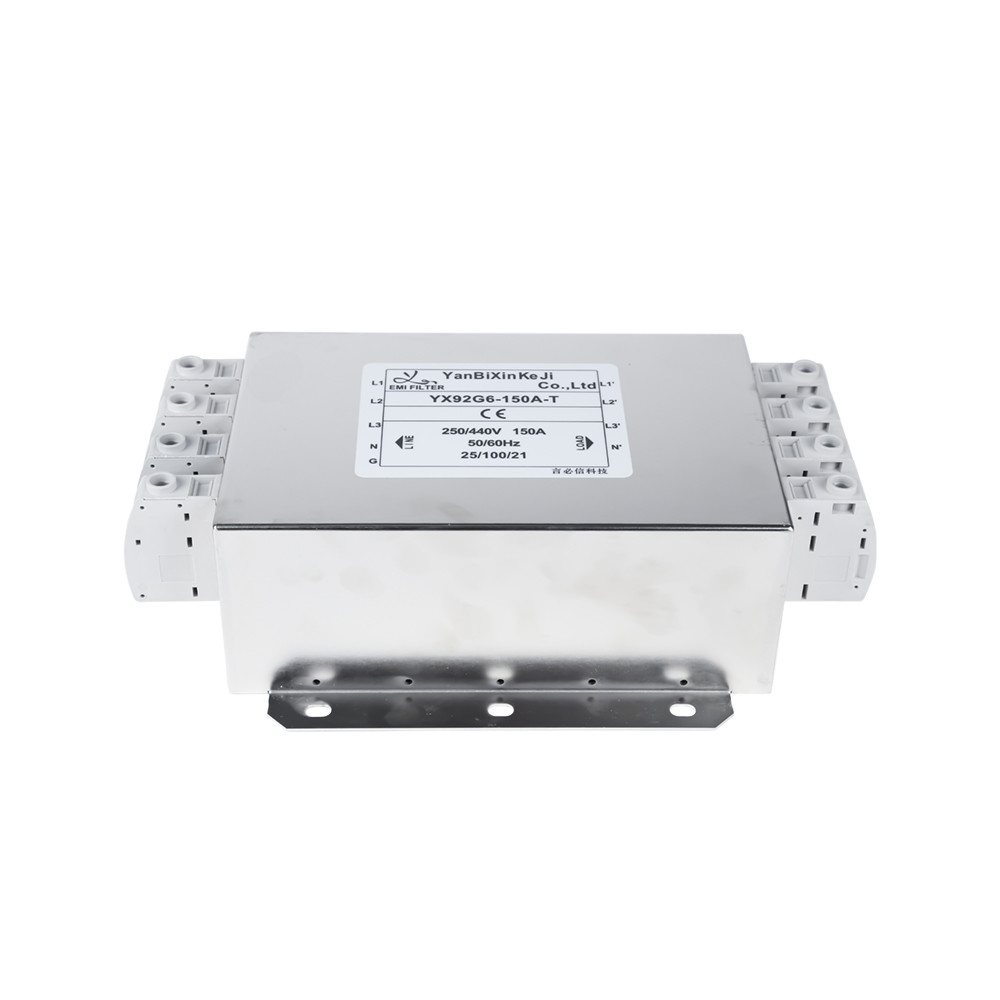

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application

Ask Lasest Price
Brand Name :	YBX
Model Number :	YX92G6-150A-T
Certification :	cUL, ENEC, CE, ROHS, ISO
Price :	Negotiable
Supply Ability :	2000pcs per month
Delivery Time :	15-25 days
MOQ :	5pcs

Add to Cart

Product Details
Company Profile

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application

Technical Specification:

Item	3 Phase 3 Wire Filter
Model	3 Phase EMI Filter -YX92G series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Rated Current	1A-100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max
MOQ	5pcs
Price	USD4.8~88/Meter
Lead Time	3~15 weekday for Low Pass EMI Filter

Features:

1. Protection against interference of voltage.

2. YX92 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger.

3. Customized products according to customer's requirements.

Typical Applications:

1. For photovoltaic systems and industrial applications

2. Three-phase motor drives

3. UPS/SMPS

4. Industrial automation equipment

Rule of Nomination:

YX-----92-------G6--------150A-----------S

¦ ¦ ¦ ¦

circuit case current connection

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YX81G1-1A

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G1-3A

Fig.1

YX81G1-6A

Fig.1

YX81G1-10A

10A

Fig.1

YX81G1-20A

20A

Fig.1

YX81G1-30A

30A

Fig.1

YX81G2-30A

30A

<2.0mA

Fig.1

YX81G2-40A

40A

Fig.1

YX81G3-40A

40A

<5.0mA

Fig.1

YX81G3-50A

50A

Fig.1

YX81G3-60A

60A

Fig.1

YX81G5-80A

80A

<7.0mA

Fig.1

YX81G5-100A

100A

Fig.1

YX81G6-200A

200A

<10.0mA

Fig.1

Electrical Schematic:

Mechanical Dimension(Unit: mm)

Case	A	B	C	D	E	F	G	H	I	J	K	L

G1	72	65	39	75	85	35	22		45	M4	M4/M6

G2	98	80	40	95	105	50	20	4.5*6.5	50	M4	M4/M6

G3	120	100	50	115	130	50	28	4*6	60	M4	M4/M6

G5	150	105	60	120	135	55	35	4*6	90	M6	M8

G6	260	170	100	196	220	85	65	8*12	172	M8	M10

Tolerances	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15

YX92G6-150A-T Three Phase Filter:

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
