Electrical EMI Power Noise Filter Single Phase Customized Service

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB21D2-3A-W
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Delivery Time :	20-25 days

Add to Cart

Product Details
Company Profile

Electrical EMI Power Noise Filter Single Phase Customized Service

50 60Hz 120 250VAC 100A Single Phase EMI Power Line Noise Electrical Filter

Technical Specification:

Item	Power line Filter
Model	Power line Filter YB-D
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~20A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	50pcs
Price	USD1~9.8/Meter
Lead Time	5~20 weekday

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device;

-- Various terminal options allow you to select;

-- There are a variety of parts and combinations to meet different customer's EMC tests.

Typical Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Building automation

4. Office automation equipment

Rule of Nomination:

YB 21 E4 - 10A - Q ( 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB21E4-1A

1A~4A

<0.8mA

Fig.1

115/250V

50/60Hz

YB21E4-6A

Fig.1

YB21E4-8A

Fig.1

YB21E4-10A

10A

Fig.1

YB21E4-15A

15A

Fig.1

YB21D1-1A

1A~4A

Fig.1

YB21D1-6A

Fig.1

YB21D2-6A

Fig.1

YB21D2-8A

Fig.1

YB21D2-10A

10A

Fig.1

YB21D2-15A

15A

Fig.1

YB21D3-8A

Fig.1

YB21D3-10A

10A

Fig.1

YB21D3-15A

15A

Fig.1

YB21D4-10A

10A

Fig.1

YB21D4-15A

15A

Fig.1

YB21D4-20A

20A

Fig.1

YB21D5-15A

15A

Fig.1

YB21D5-20A

20A

Fig.1

YB21D5-30A

30A

Fig.1

YB21D6-20A

20A

Fig.1

YB21D6-30A

30A

Fig.1

YB21F1-20A

20A

Fig.1

YB21F1-30A

30A

Fig.1

YB21F2-30A

30A

Fig.1

YB21F2-40A

40A

Fig.1

YB21F2-50A

50A

Fig.1

YB21F3-50A

50A

Fig.1

Medical Type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Medical equipment
5

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB21E4-1A-x(5)

1A~4A

<5μA

Fig.2

115/250V

50/60Hz

YB21E4-6A-x(5)

Fig.2

YB21E4-8A-x(5)

Fig.2

YB21E4-10A-x(5)

10A

Fig.2

YB21E4-15A-x(5)

15A

Fig.2

YB21D1-1A-x(5)

1A~4A

Fig.2

YB21D1-6A-x(5)

Fig.2

YB21D2-6A-x(5)

Fig.2

YB21D2-8A-x(5)

Fig.2

YB21D2-10A-x(5)

10A

Fig.2

YB21D2-15A-x(5)

15A

Fig.2

YB21D3-8A-x(5)

Fig.2

YB21D3-10A-x(5)

10A

Fig.2

YB21D3-15A-x(5)

15A

Fig.2

YB21D4-10A-x(5)

10A

Fig.2

YB21D4-15A-x(5)

15A

Fig.2

YB21D4-20A-x(5)

20A

Fig.2

YB21D5-15A-x(5)

15A

Fig.2

YB21D5-20A-x(5)

20A

Fig.2

YB21D5-30A-x(5)

30A

Fig.2

YB21D6-20A-x(5)

20A

Fig.2

YB21D6-30A-x(5)

30A

Fig.2

YB21F1-20A-x(5)

20A

Fig.2

YB21F1-30A-x(5)

30A

Fig.2

YB21F2-30A-x(5)

30A

Fig.2

YB21F2-40A-x(5)

40A

Fig.2

YB21F2-50A-x(5)

50A

Fig.2

YB21F3-50A-x(5)

50A

Fig.2

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

Fig.1

Fig. 2

Mechanical Dimension(Unit: mm)

Case	E4	D1	D2	D3	D4	D5	D6	F1	F2	F3	Tolerances

A	44.5	51	51	63	63	73	94	72	98	150	±1

B	50.5	33	51	51	51	56	55	65	80	105	±1

C	30	29	21	29	38	44.5	44.5	39	41	60	±1

D	61.5	60	63	75	75	87	104	75	95	120	±0.15

E	70.5	68	72	85	85	98	118	45	50	80	±1

F	28	20	27	25	27	30	30	35	50	60	±0.5

G	10.5	10	10	10	15.5	16	15	22	24	35	±0.5

H	6	4.5	4.5	5	4.5	4.5	4.5*6	4.2	4.2	4*6	±0.15

I	4.5							4.2*6.2	4.2*6.2	4*6	±0.15

J								M4/M6	M4/M6	M4/M6

K	6.3*0.8	18awg	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	±0.15

L								35	50	60	±2

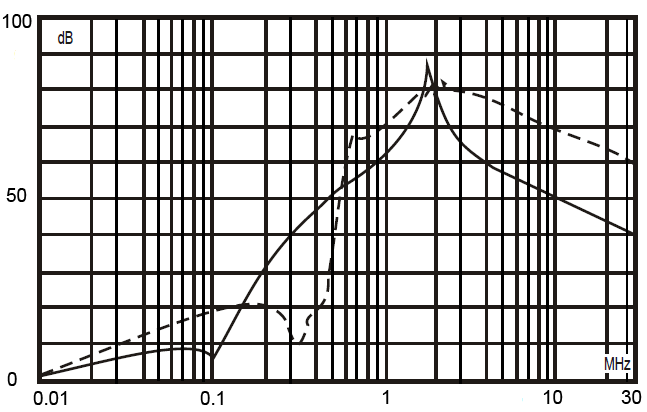

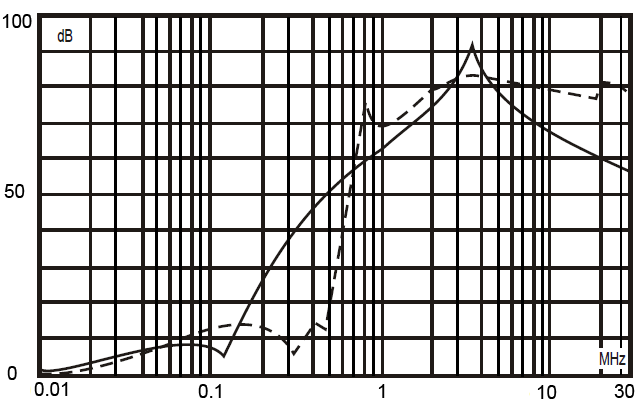

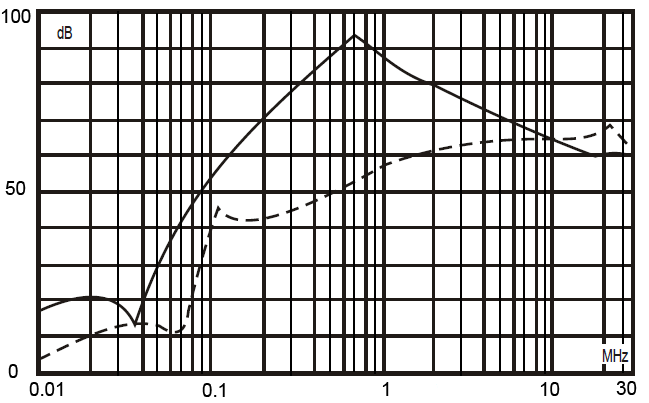

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 6A

8A 10A

20A 30A

50A
