    EMI Single Phase Emi Filter For Datacom Equipment ROHS Certification

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB12E3-10A-Q
    Certification : cUL, TUV, CQC, CE, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
    Delivery Time : 20-25 days
    MOQ : 100pcs
    • Product Details
    • Company Profile

    EMI Single Phase Emi Filter For Datacom Equipment ROHS Certification


    High Quality Low Pass EMI Filter Single Phase Fast On Filter for Datacom Equipment

    Technical Specification:


    ItemPower line Filter
    ModelPower line Filter YB-E
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency10K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage115V/250V
    Rated Current1~15A
    Environmental Temperature40°C
    Temperature Range25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line1450VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/60HZ 0.8mA Max
    MOQ100pcs
    PriceUSD1~5.3/Meter
    Lead Time5~20 weekday

    Features:


    -- The compact size can be applied to various situations.


    -- YB11 filters are also available as two-stage filters(YB35) in noisy environmment.


    -- There are a variety of parts and combinations to meet different customer's EMC tests.


    -- Customized products according to customer's requirements.


    Typical Applications:


    -- Electrical and electronic equipment


    -- Medical equipment


    -- Datacom equipment


    -- Office automation equipment


    Rule of Nomination:


    YB 11 E1 - 10A - Q ( R 5 )

    ¦ ¦ ¦ ¦ ¦ ¦

    circuit case current connection optional


    Tabulates:


    Model No.Rated Current
    @40°C
    Terminal Options*
    Bleeder resistor(optional)Leakage current 250V/50HzElectrical Schematic
    Rated Voltage(V)Operating Frequency(Hz)
    YB11E1-1A1AQ-W-

    <0.8mA

    Fig.1

    115/250V


    50/60Hz

    YB11E1-2A2AQ-W-Fig.1
    YB11E1-3A3AQ-W-Fig.1
    YB11E1-4A4AQ-W-Fig.1
    YB11E1-6A6AQ-W-Fig.1
    YB11E1-8A8AQ-W-Fig.1
    YB11E1-10A10AQ-W-Fig.1
    YB11E2-1A1AQ-W-Fig.1
    YB11E2-2A2AQ-W-Fig.1
    YB11E2-3A3AQ-W-Fig.1
    YB11E2-4A4AQ-W-Fig.1
    YB11E2-6A6AQ-W-Fig.1
    YB11E2-8A8AQ-W-Fig.1
    YB11E2-10A10AQ-W-Fig.1
    YB11E3-1A1AQ-W-Fig.1
    YB11E3-2A2AQ-W-Fig.1
    YB11E3-3A3AQ-W-Fig.1
    YB11E3-4A4AQ-W-Fig.1
    YB11E3-6A6AQ-W-Fig.1
    YB11E3-8A8AQ-W-Fig.1
    YB11E3-10A10AQ-W-Fig.1

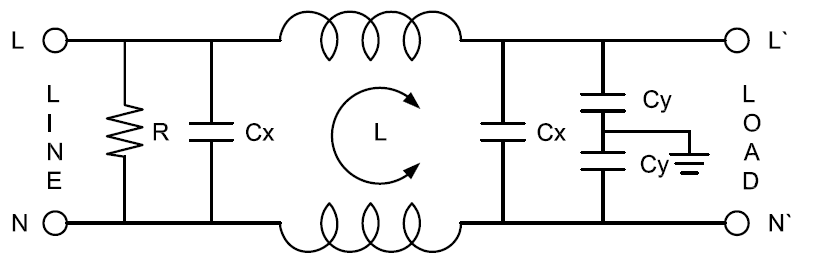

    Electrical schematic:




    Mechanical Dimension(Unit: mm)


    CaseABCDEFGHIJK
    E124441954.564.5239.54.56.3*0.8
    E244292240501584.53.5UL1015
    E3324622.554622412.54.56.3*0.8
    Tolerances±1±1±1±0.15±1±0.5±0.5±0.15±0.15±0.15

    Insertion loss table(In 50ohm system according IEC/CISPR No.17)


    Common mode -------- differential mode

    1A 3A


    6A 8A


    10A
