50/60Hz Low Pass Emi Filter 100A 250V 440VAC Power Filter

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB21F4-100A-S
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Delivery Time :	20-25 days
MOQ :	50pcs

Add to Cart

Product Details
Company Profile

50/60Hz Low Pass Emi Filter 100A 250V 440VAC Power Filter

YB12F4 50A 250V, 440VAC Low Pass EMI Passive Power Filter for Machine

Technical Specification:

Item	Power line Filter
Model	Power line Filter YB-F
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	50pcs
Price	USD3~18.8/Meter
Lead Time	5~20 weekday

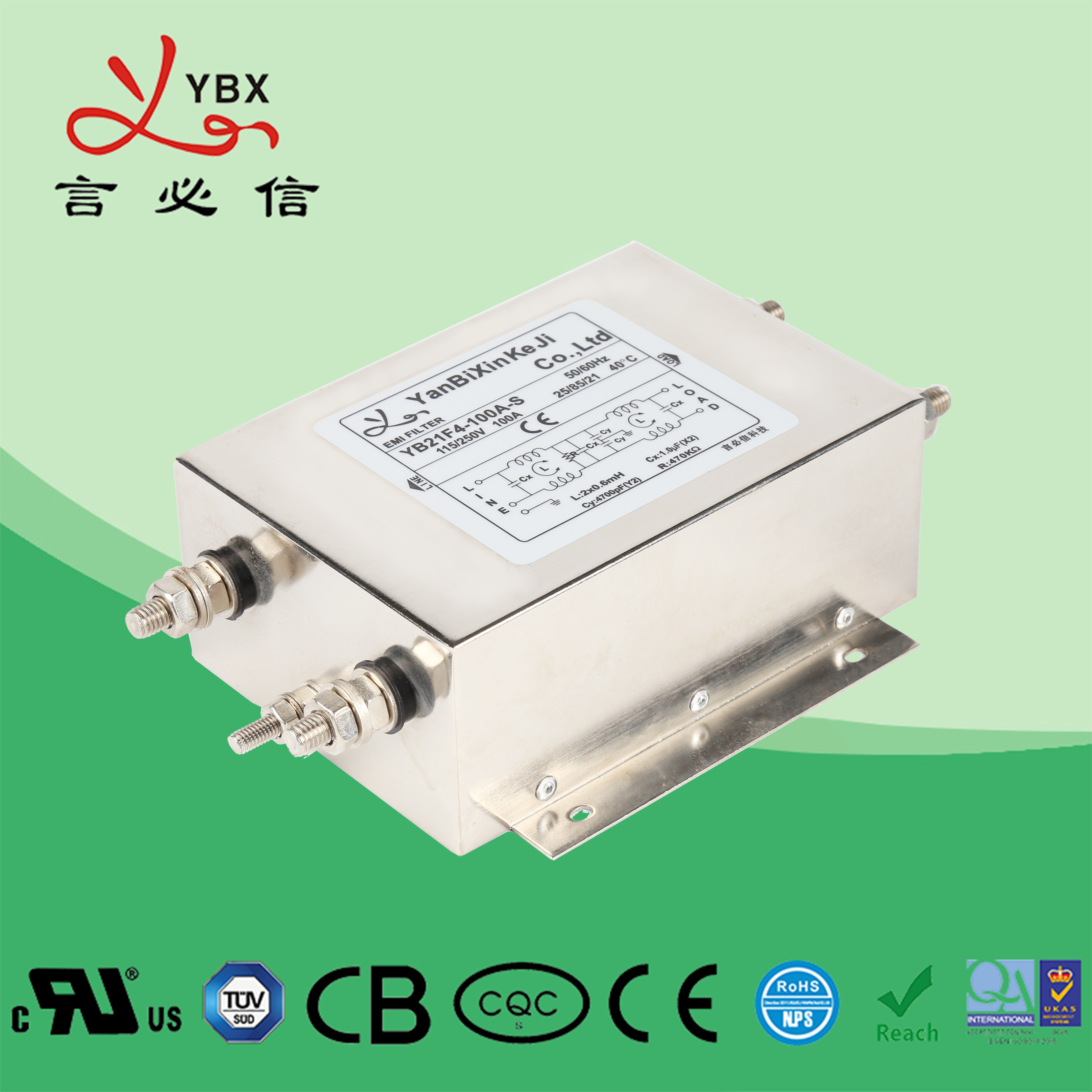

Product picture:

50/60Hz Low Pass Emi Filter 100A 250V 440VAC Power Filter

Features:

Various terminal options: faston/screw/wire; Low leakage current and high quality components ensure the safety and reliability of filters; Rated currents from 1 to 50A; General purpose filtering performance

Typical Applications:

1.Electrical and electronic equipment

2.Medical equipment

3.Datacom equipment

4.Office automation equipment

Rule of Nomination:

YB 12 F1 - 10A - Q ( R 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor (optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB12E3-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB12E3-3A

Fig.1

YB12E3-6A

Fig.1

YB12E4-1A

Fig.1

YB12E4-3A

Fig.1

YB12E4-6A

Fig.1

YB12E4-8A

Fig.1

YB12E4-10A

10A

Fig.1

YB12E4-15A

15A

Fig.1

YB12E4-20A

20A

Fig.1

YB12D1-1A

Fig.1

YB12D1-3A

Fig.1

YB12D1-6A

Fig.1

YB12D2-6A

Fig.1

YB12D2-8A

Fig.1

YB12D2-10A

10A

Fig.1

YB12D2-15A

15A

Fig.1

YB12D2-20A

20A

Fig.1

YB12D3-10A

10A

Fig.1

YB12D3-15A

15A

Fig.1

YB12D3-20A

20A

Fig.1

YB12D4-30A

30A

Fig.1

YB12D5-30A

30A

Fig.1

YB12F1-30A

30A

Fig.1

YB12F1-40A

40A

Fig.1

YB12F2-30A

30A

Fig.1

YB12F2-40A

40A

Fig.1

YB12F3-40A

40A

Fig.1

YB12F3-50A

50A

Fig.1

YB12F4-50A

50A

Fig.1

Medical Type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Bleeder resistor (optional)

Medical equipment

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB12E3-1A-x(5)

<5μA

Fig.2

115/250V

50/60Hz

YB12E3-3A-x(5)

Fig.2

YB12E3-6A-x(5)

Fig.2

YB12E4-1A-x(5)

Fig.2

YB12E4-3A-x(5)

Fig.2

YB12E4-6A-x(5)

Fig.2

YB12E4-8A-x(5)

Fig.2

YB12E4-10A-x(5)

10A

Fig.2

YB12E4-15A-x(5)

15A

Fig.2

YB12E4-20A-x(5)

20A

Fig.2

YB12D1-1A-x(5)

Fig.2

YB12D1-3A-x(5)

Fig.2

YB12D1-6A-x(5)

Fig.2

YB12D2-6A-x(5)

Fig.2

YB12D2-8A-x(5)

Fig.2

YB12D2-10A-x(5)

10A

Fig.2

YB12D2-15A-x(5)

15A

Fig.2

YB12D2-20A-x(5)

20A

Fig.2

YB12D3-10A-x(5)

10A

Fig.2

YB12D3-15A-x(5)

15A

Fig.2

YB12D3-20A-x(5)

20A

Fig.2

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

Fig.1

Fig. 2

Mechanical Dimension(Unit: mm)

Case	E3	E4	D1	D2	D3	D4	D5	F1	F2	F3	F4	Tolerances

A	32	44.5	51	51	63	63	73	72	98	120	150	±1

B	46	50.5	33	51	51	51	56	65	80	100	105	±1

C	22.5	30	29	21	29	38	44.5	39	41	50	60	±1

D	54	61.5	60	63	75	75	87	75	95	115	120	±0.15

E	62	70.5	68	72	85	85	98	45	50	80	90	±1

F	24	28	20	27	25	27	30	35	50	60	60	±0.5

G	12.5	10.5	10	10	10	15.5	16	22	24	26	35	±0.5

H	4.5	6	4.5	4.5	5	4.5	4.5	4.2	4.2	4*6	4*6	±0.15

I		4.5						4.2*6.2	4.2*6.2	4*6	4*6	±0.15

J								M4/M6	M4/M6	M4/M6	M4/M6

K	6.3*0.8	6.3*0.8	UL 1015	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	M4	±0.15

L								35	50	60	60	±2

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

6A 8A

10A 20A

30A
