Description Of YB12F1-20A-Q Emi Filter:

Our YB12F1-20A-Q is a single phase EMI filter designed to reduce electromagnetic interference (EMI) in AC power systems.It is designed to operate with a maximum current rating of 20 amps and a maximum voltage rating of 250 volts AC. It has a compact size and can be easily integrated into electronic systems with limited space.

Feature Of YB12F1-20A-Q Emi Filter:

1. YB12 filters are also available as two-stage filters(YB35) in noisy environmment.

2. There are a variety of parts and combinations to meet different customer's EMC tests.

3. Dedicated to 150KHz-30MHz frequency, suitable for 115V/250V AC power system.

4. General purpose power line filter with fast-on/screw/wire terminals.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Office automation and datacom equipment

YB-F Emi filter parameters:

Product	YB12 Series Emi Filter	Rated Current	1~20A
Model	YB12F1-20A-Q	Environmental Temperature	40°C
Transfer Function	Low Pass	Temperature Range	25 / 085 / 21
Package Type	Surface Mount	Operating Frequency	50/60HZ
Nominal Center Frequency	150K-30MHZ	Line to Line	1450VDC
Insertion Loss	60~90dB	Line to Ground	2250VDC
Input Impedance	50Ω	Maximum Leakage Current	115VAC/60HZ 0.6mA Max 250VAC/50HZ 1.2mA Max
Rated Voltage	115V/250V	MOQ	100pcs
Lead Time	5~15 weekday	Price	Negotiable

Rule Of Nomination:

YB-----12-------F2---------20A----------Q---------- --( 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

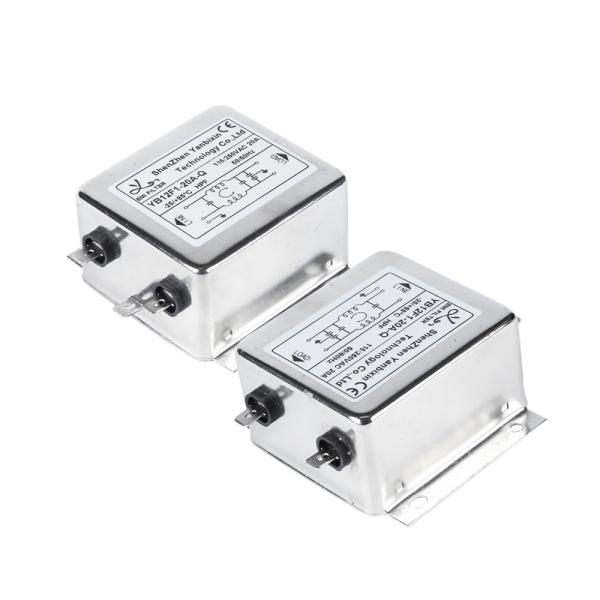

YB12F1-20A-Q Product Picture:

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

Tabulates:

Model No.	Rated Current @40°C	Terminal Options*			Bleeder resistor(optional)	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options*

YB12E3-1A	1A	Q	-	W	-	<0.8mA	Fig.1	115/250V	50/60Hz
YB12E3-3A	3A	Q	-	W	-		Fig.1
YB12E3-6A	6A	Q	-	W	-		Fig.1
YB12E4-1A	1A	Q	S	W	-		Fig.1
YB12E4-3A	3A	Q	S	W	-		Fig.1
YB12E4-6A	6A	Q	S	W	-		Fig.1
YB12E4-8A	8A	Q	S	W	-		Fig.1
YB12E4-10A	10A	Q	S	W	-		Fig.1
YB12E4-15A	15A	Q	S	-	-		Fig.1
YB12E4-20A	20A	Q	S	-	-		Fig.1
YB12D1-1A	1A	Q	-	W	-		Fig.1
YB12D1-3A	3A	Q	-	W	-		Fig.1
YB12D1-6A	6A	Q	-	W	-		Fig.1
YB12D2-6A	6A	Q	S	W	-		Fig.1
YB12D2-8A	8A	Q	S	W	-		Fig.1
YB12D2-10A	10A	Q	S	W	-		Fig.1
YB12D2-15A	15A	Q	S	-	-		Fig.1
YB12D2-20A	20A	Q	S	-	-		Fig.1
YB12D3-10A	10A	Q	S	W	-		Fig.1
YB12D3-15A	15A	Q	S	-	-		Fig.1
YB12D3-20A	20A	Q	S	-	-		Fig.1
YB12D4-30A	30A	-	S	-	-		Fig.1
YB12D5-30A	30A	-	S	-	-		Fig.1
YB12F1-30A	30A	-	S	-	-		Fig.1
YB12F1-40A	40A	-	S	-	-		Fig.1
YB12F2-30A	30A	-	S	-	-		Fig.1
YB12F2-40A	40A	-	S	-	-		Fig.1
YB12F3-40A	40A	-	S	-	-		Fig.1
YB12F3-50A	50A	-	S	-	-		Fig.1
YB12F4-50A	50A	-	S	-	-		Fig.1

Medical Type Tabulates:

Model No.	Rated Current @40°C	Terminal Options			Bleeder resistor (optional) R(MΩ)	Medical equipment 5	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options

YB12E3-1A-x(5)	1A	Q	-	W	1	5	<5μA	Fig.2	115/250V	50/60Hz
YB12E3-3A-x(5)	3A	Q	-	W	1	5		Fig.2
YB12E3-6A-x(5)	6A	Q	-	W	1	5		Fig.2
YB12E4-1A-x(5)	1A	Q	S	W	1	5		Fig.2
YB12E4-3A-x(5)	3A	Q	S	W	1	5		Fig.2
YB12E4-6A-x(5)	6A	Q	S	W	1	5		Fig.2
YB12E4-8A-x(5)	8A	Q	S	W	1	5		Fig.2
YB12E4-10A-x(5)	10A	Q	S	W	1	5		Fig.2
YB12E4-15A-x(5)	15A	Q	S	-	1	5		Fig.2
YB12E4-20A-x(5)	20A	Q	S	-	1	5		Fig.2
YB12D1-1A-x(5)	1A	Q	-	W	1	5		Fig.2
YB12D1-3A-x(5)	3A	Q	-	W	1	5		Fig.2
YB12D1-6A-x(5)	6A	Q	-	W	1	5		Fig.2
YB12D2-6A-x(5)	6A	Q	S	W	1	5		Fig.2
YB12D2-8A-x(5)	8A	Q	S	W	1	5		Fig.2
YB12D2-10A-x(5)	10A	Q	S	W	1	5		Fig.2
YB12D2-15A-x(5)	15A	Q	S	-	1	5		Fig.2
YB12D2-20A-x(5)	20A	Q	S	-	1	5		Fig.2
YB12D3-10A-x(5)	10A	Q	S	W	1	5		Fig.2
YB12D3-15A-x(5)	15A	Q	S	-	1	5		Fig.2
YB12D3-20A-x(5)	20A	Q	S	-	1	5		Fig.2

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

Fig.1

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

Fig.2

Mechanical Dimension(Unit: mm)

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

Case	E4	D1	D2	D3	D4	D5	D6	F1	F2	F3	Tolerances

A	44.5	51	51	63	63	73	94	72	98	150	±1

B	50.5	33	51	51	51	56	55	65	80	105	±1

C	30	29	21	29	38	44.5	44.5	39	41	60	±1

D	61.5	60	63	75	75	87	104	75	95	120	±0.15

E	70.5	68	72	85	85	98	118	45	50	80	±1

F	28	20	27	25	27	30	30	35	50	60	±0.5

G	10.5	10	10	10	15.5	16	15	22	24	35	±0.5

H	6	4.5	4.5	5	4.5	4.5	4.5*6	4.2	4.2	4*6	±0.15

I	4.5							4.2*6.2	4.2*6.2	4*6	±0.15

J								M4/M6	M4/M6	M4/M6

K	6.3*0.8	18awg	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	±0.15

L								35	50	60	±2

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 6A

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

8A 10A

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply

20A

YB-F Series Emi Filter High Attenuation Single Phase Filter For 115V/250V Power Supply
