115V/250V IEC Inlet Filter With Switch Power Entry Module Filter For Medical Equipment

Technical Specification:

Features:

(1) Versions to 10A are available with 1 pole rocker switch

(2) There are a variety of parts and combinations to meet different customer's EMC tests

(3) Customized products according to customer's requirements

Typical Applications:

1. Portable electrical and electronic equipment;

2. Medical equipment;

3. Test and measurement equipment;

4. Small and medium-sized machines and household equipment

5. Single-phase power supply,switch-mode power supply

Rule of Nomination:

YB-----11-------B6------10A------------Q------------( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Medical Type Tabulates:

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Electrical schematic:

Fig.1

Fig.3

Mechanical Dimension(Unit: mm)

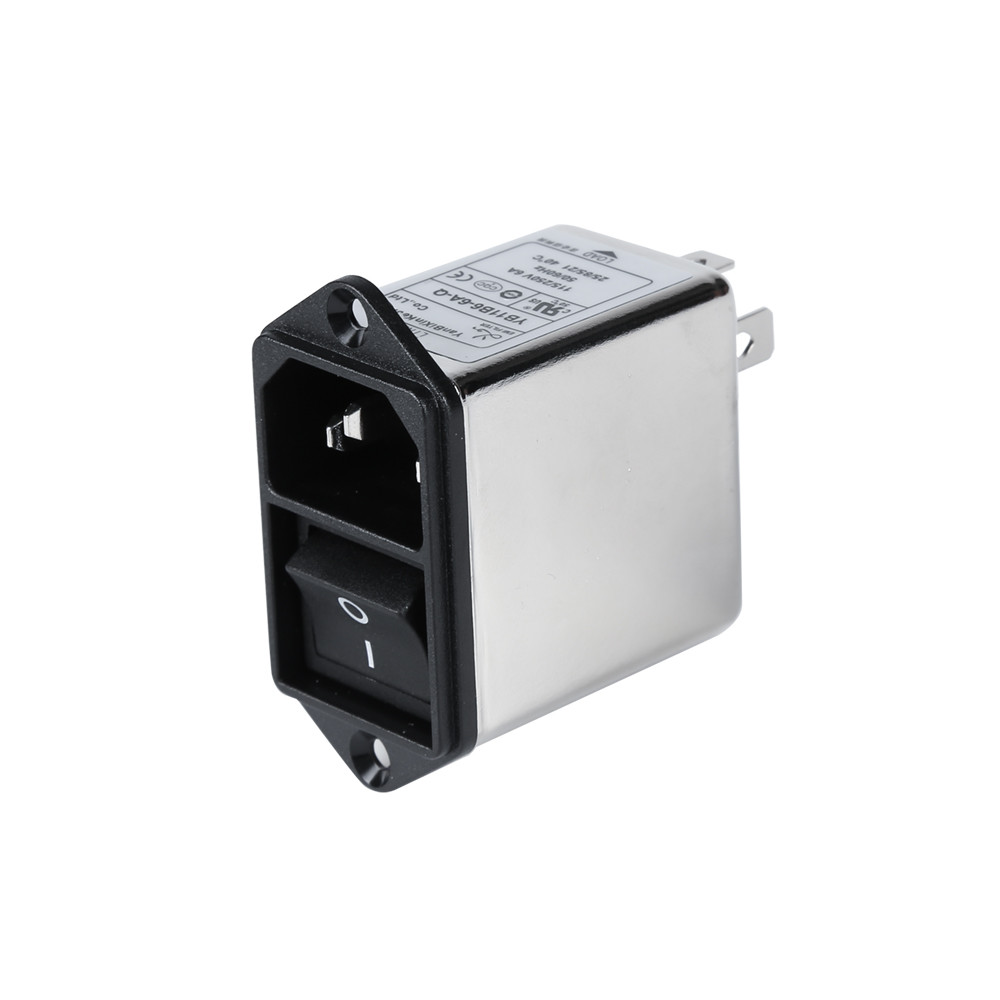

YB11B6-10A-Q EMI Filter Pitcure:

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
