YB11B17 Waterproof Series EMI EMC Electric Low Pass Filter 10A 120V 250VAC

Features:

1. Versions to 10A are available with fuse holder for one or two (5*20mm) fuses

2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

3. There are a variety of parts and combinations to meet different customer's EMC tests

Typical Applications:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Rule of Nomination:

YB 11 B17 - 10A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Medical type Tabulates

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Electrical schematic:

Fig.1

Fig.2

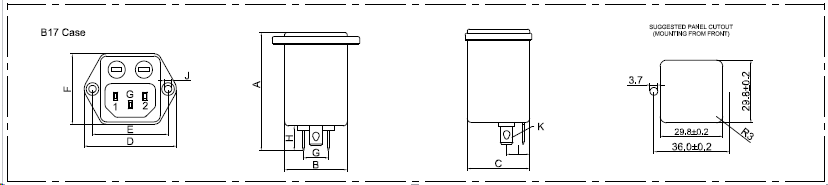

Mechanical Dimension(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

6A 8A

10A
