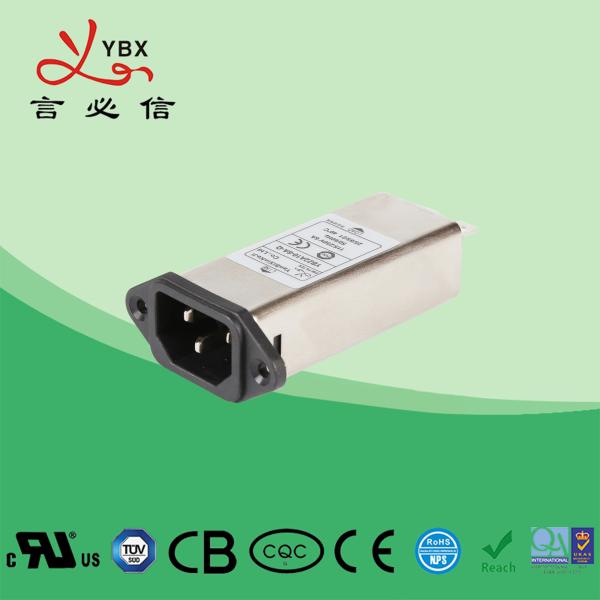

Yanbixin 20A Inline EMC Line Filter For Medical Equipment 120V 250V OEM Service

Product Categories

Shenzhen Yanbixin Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Yanbixin 20A Inline EMC Line Filter For Medical Equipment 120V 250V OEM Service

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB11A12-20A-Q
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	10000 Piece/Pieces per Month
Delivery Time :	20-25 days

Add to Cart

Product Details
Company Profile

Yanbixin 20A Inline EMC Line Filter For Medical Equipment 120V 250V OEM Service

20A Inline EMI Filter EMC Power Line Filter For Medical Equipment 120V, 250V

Technical Specification:

Item	IEC Filter
Model	IEC Filter YB-A
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs
Price	USD1~9.8/Meter
Lead Time	5~15 weekday

Features:

1. High performance and high attenuation power filters with IEC 320 socket

2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

3. There are a variety of parts and combinations to meet different customer's EMC tests

Typical Applications:

-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Rule of Nomination:

YB 11 A12 - 10A - Q ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11A11-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11A11-2A

Fig.1

YB11A11-3A

Fig.1

YB11A11-4A

Fig.1

YB11A11-6A

Fig.1

YB11A11-8A

Fig.1

YB11A11-10A

10A

Fig.1

YB11A11-15A

15A

Fig.1

YB11A11-20A

20A

Fig.1

YB11A12-1A

Fig.1

YB11A12-2A

Fig.1

YB11A12-3A

Fig.1

YB11A12-4A

Fig.1

YB11A12-6A

Fig.1

YB11A12-8A

Fig.1

YB11A12-10A

10A

Fig.1

YB11A12-15A

15A

Fig.1

YB11A12-20A

20A

Fig.1

YB11A13-1A

Fig.1

YB11A13-2A

Fig.1

YB11A13-3A

Fig.1

YB11A13-4A

Fig.1

YB11A13-6A

Fig.1

YB11A13-8A

Fig.1

YB11A13-10A

10A

Fig.1

YB11A13-15A

15A

Fig.1

YB11A13-20A

20A

Fig.1

Medical type Tabulates

Model No.

Rated Current
@40°C

Terminal Options

Bleeder resistor

(optional)

Medical equipment
5

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11A11-1A-x(R5)

<5μA

Fig.2

115/250V

50/60Hz

YB11A11-2A-x(R5)

Fig.2

YB11A11-3A-x(R5)

Fig.2

YB11A11-4A-x(R5)

Fig.2

YB11A11-6A-x(R5)

Fig.2

YB11A11-8A-x(R5)

Fig.2

YB11A11-10A-x(R5)

10A

Fig.2

YB11A11-15A-x(R5)

15A

Fig.2

YB11A11-20A-x(R5)

20A

Fig.2

YB11A12-1A-x(R5)

Fig.2

YB11A12-2A-x(R5)

Fig.2

YB11A12-3A-x(R5)

Fig.2

YB11A12-4A-x(R5)

Fig.2

YB11A12-6A-x(R5)

Fig.2

YB11A12-8A-x(R5)

Fig.2

YB11A12-10A-x(R5)

10A

Fig.2

YB11A12-15A-x(R5)

15A

Fig.2

YB11A12-20A-x(R5)

20A

Fig.2

YB11A13-1A-x(R5)

Fig.2

YB11A13-2A-x(R5)

Fig.2

YB11A13-3A-x(R5)

Fig.2

YB11A13-4A-x(R5)

Fig.2

YB11A13-6A-x(R5)

Fig.2

YB11A13-8A-x(R5)

Fig.2

YB11A13-10A-x(R5)

10A

Fig.2

YB11A13-15A-x(R5)

15A

Fig.2

YB11A13-20A-x(R5)

20A

Fig.2

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Electrical schematic:

Fig.1

Fig.2

Mechanical Dimension(Unit: mm)

Case	A	B	C	D	E	F	G	H	I	J	K

A11	80.5	34	26	53	44	30	15.5	11.8	17	M3*0.5	6.35*0.8

A12	80.5	34	26	53	42	30	15.5	11.8	17	3.5	6.35*0.8

A13	80.5	34	26	53	42	30	15.5	11.8	17	3.5	6.35*0.8

Tolerances	±1	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.5	±1	±0.15

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

16A 20A
