High Performance Low Pass EMI Filter 6A 10A Mechanical Equipment
Power Filters
1.Product Description
| Item Name | Low Pass EMI Filter |
| Model | YB21D6-20A-S |
| Transfer Function | Low Pass |
| Package Type | Surface Mount/Bolts Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 500VDC |
| Line to Ground | 2250VDC |
| MOQ | 1000pcs |
| Price | Ask customer service |
| Lead Time | 5~20 weekday |
Product picture:

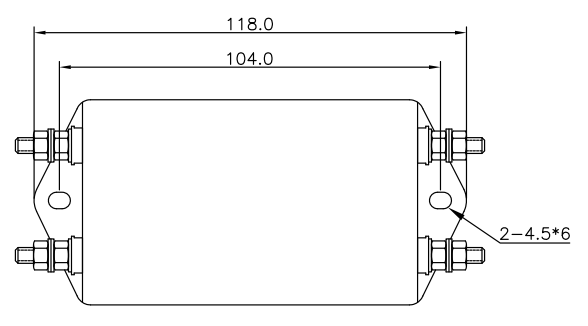

Physical Dimensional:

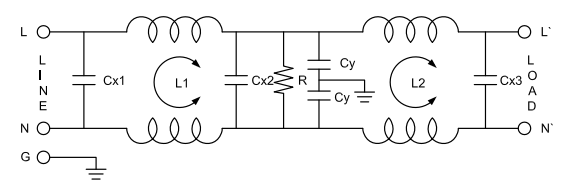

Electrical schematic:
3.Application Field
--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
4.About us
Shenzhen Yanbixin Technology Co., Ltd. is a national high-tech
enterprise integrating electromagnetic compatibility (EMC)& EMI
FILTER product research and development, production and sales.
After more than 10 years of efforts, the products have been CUL/UL,
TUV, CQC, CE, CB, ENEC, ROHS, REACH and other certifications and
patents, many products, complete specifications, in order to ensure
quality, in strict accordance with the GJB9001C-2017 military
standard system standard production.
Products are divided into AC, DC, military, harmonic, pulse group,
signal and other specifications of filters; In medical, home
appliances, elevators, sports equipment, instrumentation,
automation equipment, Internet of Things equipment, communication
equipment, new energy vehicles, high-speed rail, aircraft, ships,
security equipment and other industries and fields have been widely
used.
5.Certification
We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other
certifications.
6.FAQ
Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us
with the samples or drawings and specification.
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production
experience.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for
samples; 10 to 15 for small orders, 15-25days for mass production
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order. Please contact
us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before
shipment, and a balance against shipment. And we also accept the
L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC,
REACH, etc.
