YB-B Series 10A IEC Inlet Filter With Switch EMI Noise Filter For
Electronic Equipment
IEC Inlet Filter With Switch:
YB11B3-6A-Q is a IEC Inlet Filter with switch. It is a compact and easy to install filter that plugs directly into
an AC power outlet. Our design standards are in accordance with IEC60601. IEC Standard inlets allow the use of one common input socket to
accomodate differing international power cord designs. Using the IEC input ensures that regardless what electrical system
it is, there is a standard power cord to fit.
Product Parameters:
| Product name | IEC Socket EMI Filter |
| Model | YB11B3-10A-Q |
| Rated Current | 1A-10A |
| Rated Voltage | 110VAC/250VAC |
| Frequency | 50/60HZ |
| Test Voltage | 1450VDC(line to line) ,2250VAC (line to ground) |
| Insulation Resistance | 50Ω |
| Transfer Function | Low pass |
| Temperature Range | -25°C~+85°C |
| Customization | MOQ≥3000 pcs can be customized |
| Warranty | 180 Days |
Naming Rule:
| YB | 11 | B3 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| 11:11 circuit | B3 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | | 8A :8 amp | | W:wire |
| | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
IEC Inlet Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11B3 | B3 | 1 | Fast-on terminal |
| YB11B3 | B3 | 3 |
| YB11B3 | B3 | 6 | Wire |
| YB11B3 | B3 | 8 |
| YB11B3 | B3 | 10 | Solder Lug Terminals |

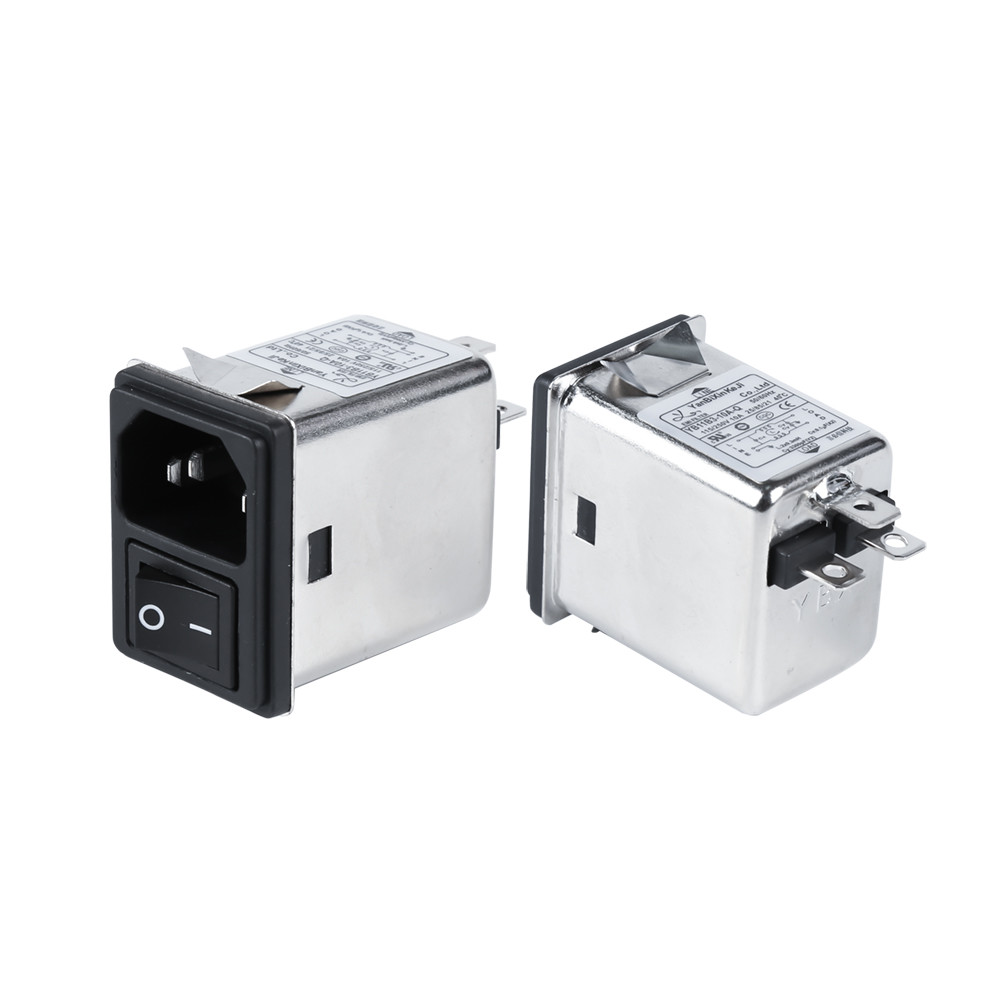

YB11B3-10A-Q Product Picture:
Application Field:
--Home appliances
--Medical equipment
--Lighting equipment
--Communication equipment
Physical Dimensions:

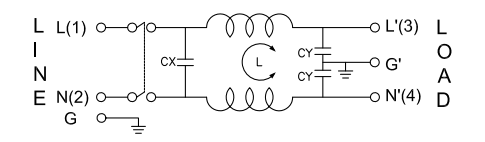

Electrical
Schematic:
