380V 150A 50/60HZ Three-Phase 4-wire EMI RFI Filter with high
attenuation for charging pile station
Features:
1. General purpose four-wire filtering
2. Rated currents from 1 to 200A
3. Protection against interference of voltage
4. Voltage rating 440VAC for worldwide acceptance
5. Used as the main input filter, YX92 filters can keep the system
reliable by restraining the conducted interference.
6. Customized products according to customer's requirements
Typical Applications:
1. Three-phase power supplies, switch-mode power supplies
2. Small to medium-sized machines and household equipment
3. Portable electrical and electronic equipment
4. Test and measurement equipment
5. Automated optical inspection (AOI)
6. Medical device (not body-coupled)
Technical Specification:
Item | Three-phase EMI Filter |
Model | YX91G6-150A-S |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 300VDC-520VDC |
Rated Current | 1~200A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 2250VDC |
Line to Ground | 2750VDC |
Line to Neutral line | 1450VDC |
Maximum Leakage Current | 520VAC/50HZ 25mA Max |
Price | Negotiable |
Lead Time | 15-25 weekday |
Rule of Nomination:
YX----91---------G6-------150A----------S
¦ ¦ ¦ ¦
circuit case current connection: Screw Lug
Electrical Schematic:

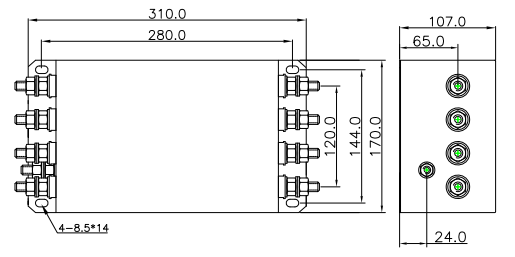

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
The pictures of our factory :
The patents and certifications:
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
