YB11A2-10A-W IEC Inlet Filter Power Line Output Noise Filter For Medical Equipment

Product Categories

Shenzhen Yanbixin Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

YB11A2-10A-W IEC Inlet Filter Power Line Output Noise Filter For Medical Equipment

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB11A2-10A-W
Certification :	cUL, TUV, CQC, CE, ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500000 Piece/Pieces per Month
Delivery Time :	15-25 days

Add to Cart

Product Details
Company Profile

YB11A2-10A-W IEC Inlet Filter Power Line Output Noise Filter For Medical Equipment

YB11A2-10A-W IEC Inlet Filter Power Line Output Noise Filter For Medical Equipment

Technical Specification:

Item	Emi Power Filter
Model	Emi Power Filter YB-C
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	125VAC 250VAC
Rated Current	1A 3A 6A 10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/50HZ 0.3uA Max
MOQ	100pcs
Price	USD2~6.8/Meter
Lead Time	5~15 weekday

Features:

-- Screw-on mounting from front side

-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

-- There are a variety of parts and combinations to meet different customer's EMC tests

-- Customized products according to customer's requirements

Rule of Nomination:

YB-----11--------A2--------10A---------W------------- ( R 5 G )

¦ ¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor (optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11C1-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11C1-2A

Fig.1

YB11C1-3A

Fig.1

YB11C1-4A

Fig.1

YB11C1-6A

Fig.1

YB11C1-8A

Fig.1

YB11C1-10A

10A

Fig.1

YB11C2-1A

Fig.1

YB11C2-2A

Fig.1

YB11C2-3A

Fig.1

YB11C2-4A

Fig.1

YB11C2-6A

Fig.1

YB11C2-8A

Fig.1

YB11C2-10A

10A

Fig.1

Medical Type Tabulates:

Model No.	Rated Current @40°C	Terminal Options			Bleeder resistor (optional)	Medical equipment	G	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)


YB11C1-1A-x(R5)	1A	Q	S	-	1	5	-	<5μA	Fig.2	115/250V	50/60Hz
YB11C1-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11C1-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11C1-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11C1-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11C1-8A-x(R5)	8A	Q	S	-	1	5	-		Fig.2
YB11C1-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2
YB11C2-1A-x(R5)	1A	Q	S	-	1	5	-		Fig.2
YB11C2-2A-x(R5)	2A	Q	S	-	1	5	-		Fig.2
YB11C2-3A-x(R5)	3A	Q	S	-	1	5	-		Fig.2
YB11C2-4A-x(R5)	4A	Q	S	-	1	5	-		Fig.2
YB11C2-6A-x(R5)	6A	Q	S	-	1	5	-		Fig.2
YB11C2-8A-x(R6)	8A	Q	S	-	1	5	-		Fig.2
YB11C2-10A-x(R5)	10A	Q	S	-	1	5	-		Fig.2

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Electrical Schematic:

Fig.1

Fig.2

Mechanical Dimension(Unit: mm)

Case

C1/C2

29.5

3.5

6.3*0.8

46.0

Tolerances

±1

±0.15

±1

±0.5

±1

±0.15

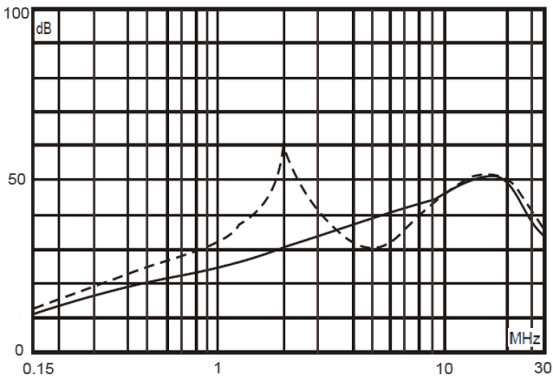

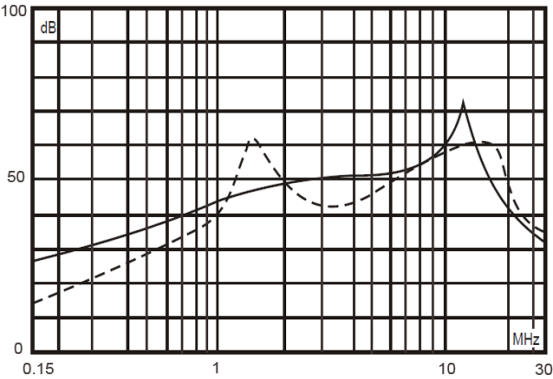

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

6A 8A

10A
