Lighting Strip EMI Power Line Noise Filter 500VDC Low Current Leakage

250V 10A EMI EMC Power filter with two-stage excellent attenuation compact design small size low current leakage for lighting strip

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Office automation and datacom equipment

Rule of Nomination:

YB 21 D1 - 10A - Q/W ( 5 )

¦ ¦ ¦ ¦ ¦

circuit case current connection optional

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

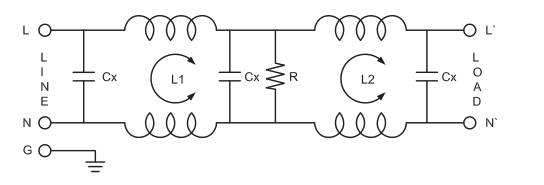

Electrical schematic:

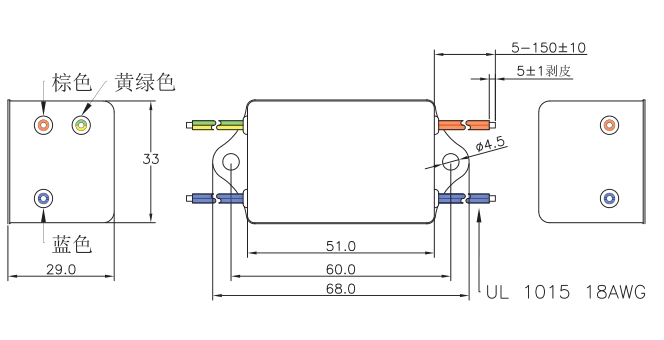

Mechanical Dimension(Unit: mm)

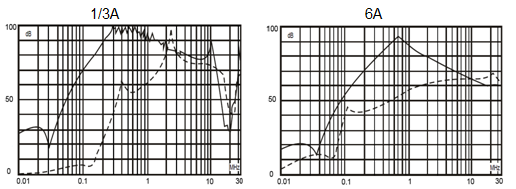

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

Package Specification:

Shipment:

---Shipping terms: DHL, UPS, FedEx, TNT, EMS

---Port is Shenzhen or as requests.

Factory Pictures:

Our Advantages:

We Can Provide Professional Solutions For Customers. Please Contact Us For Any Question.

You may also be interested in these:

Company Profile

--Our company is a collection of electromagnetic compatibility (EMC) & EMI FILTERS research and development, production and sales of high new technical enterprise. After years of efforts of the company's personnel, products successively obtained the cUL，TUV，CQC, CE, ROSH certifications. We have ISO 9001:2008 to ensure the product quality. We became the listed company in 2016; and now we are the top 500 domestic enterprises designated suppliers!

--The products are widely used in many industries and fields;Based on professional and innovation,company joint the domestic well-known professional technical institutions, and cooperate with several inspection institutions and laboratories, to provide customers with different EMC related improvement of technology and services, to solve thier technical problems at the same time.

--Our Company is carrying out the principle of "quality first, integrity-based" to work.On the basis of communication and coordination, We’ll try our best efforts to satisfy customers needs about technology; quality; price; delivery. Looking forward to your support to witness our win-win!

Enterprise Concept

--For the human environment, safety and environmental protection, green health to provide superior EMI filter devices and dedication!

--Best quality, high integrity, and continuous innovation

--Quality First, Source Management, Customer Satisfaction, Full Participation, Continuous Improvement, Standardization and Humanity

--Strict management,continuous innovation and improvement, fast and efficient, steady refinement, first-class quality, customer satisfaction

Company Patent Certificate

Patent number：ZL 2017 2 1466063.1
Patent number：ZL 2017 2 1466065.0
Patent number：ZL 2017 2 1466117.4
Patent number：ZL 2017 2 1466141.8
Patent number：ZL 2017 2 1466143.7

Product Certificates
