Low Pass UL 94V 0 AC Noise EMI EMC Filter For Dental Equipment

112V 250v 6A two-stage AC line Electronic Noise Filter with excellent attenuation performance chock for dental equipment

Product Picture:

Features:

-- YB21D2-6A-Q(5) is designed for enhanced filtering

-- Two-stage filter with excellent differential and common-mode attenuation

-- Various terminal options allow you to select;

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- Customized products according to customer's requirements

Typical Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Building automation

4. Office automation and datacom equipment

Rule of Nomination:

YB 21 D2 - 6A - Q ( 5 )

¦ ¦ ¦ ¦ ¦

circuit case current connection Medical-type

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

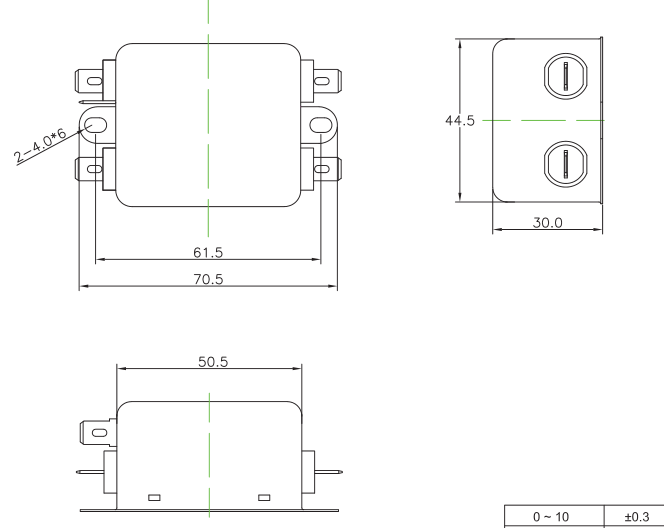

Mechanical Dimension(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

6A

The pictures of office and factory:

We Can Provide Professional Solutions For Customers. Please Contact Us For Any Question.
