120A 200A Single Phase Emi Filter With Block Terminal Copper Bar

Single-phase two-stage 250V RFI filter 120A 200A with block terminal and with high attenuation

Technical Data

Features:

• Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
• Various terminal options allow you to select the desired connection style.
• There are a variety of parts and combinations to meet different customer's EMC tests
• Customized products according to customer's requirements

Typical Applications:

• Electrical and electronic equipment
• Medical equipment
• Building automation
• Office automation and Datacom equipment

Rule of Nomination:
YB 21 F6 -200A -S/T/B
I I I I
Circuit case current connection
T: Terminal block T: Terminal block B: Copper bar

Electrical schematic:

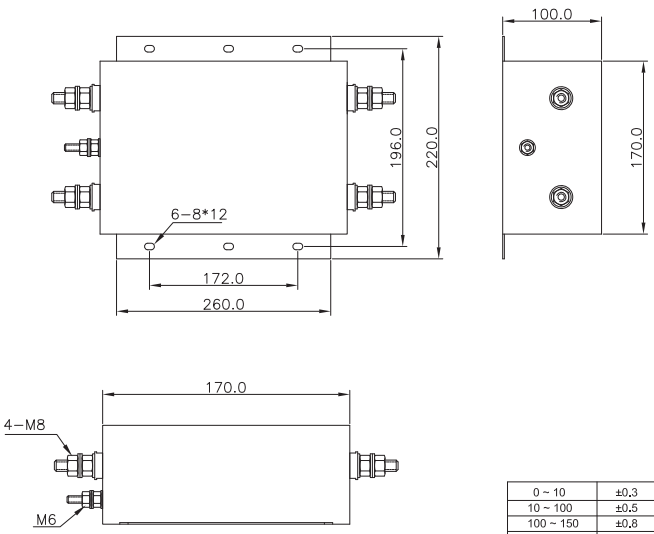

Mechanical Dimension(mm):


Factory photos:

FAQ:
Q1: Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2008.

Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.

Q5: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.

Q6: How about the sample?
A: Free samples. You need to pay for currier cost. Please contact us for details.
