YB22A5-6A-Q Dual Stage IEC Inlet Filter 220V 6A Single Socket EMI Filter For Power Switch

YB22A5-6A-Q IEC Inlet Filter:

YB11A5-6A-Q is the two-stage IEC inlet filter, reinforced circuit design with excellent filtering effect, single socket, easy and quick installation. Rated voltage: 110V/250V, Rated current: 1A,3A,6A,8A,10A.

Technical Specification:

Features Of IEC Inlet Filter:

1.Excellent performance/compact structure

2.Optional medical versions((R5) type)

3.Quick connect(6.35*0.8mm),solder or wire

4.High performance and high attenuation power filters with IEC 320 socket

5.(R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.

6.There are a variety of parts and combinations to meet different customer's EMC tests.

Typical Applications:

-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Rule of Nomination:

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Filter Selection Table:

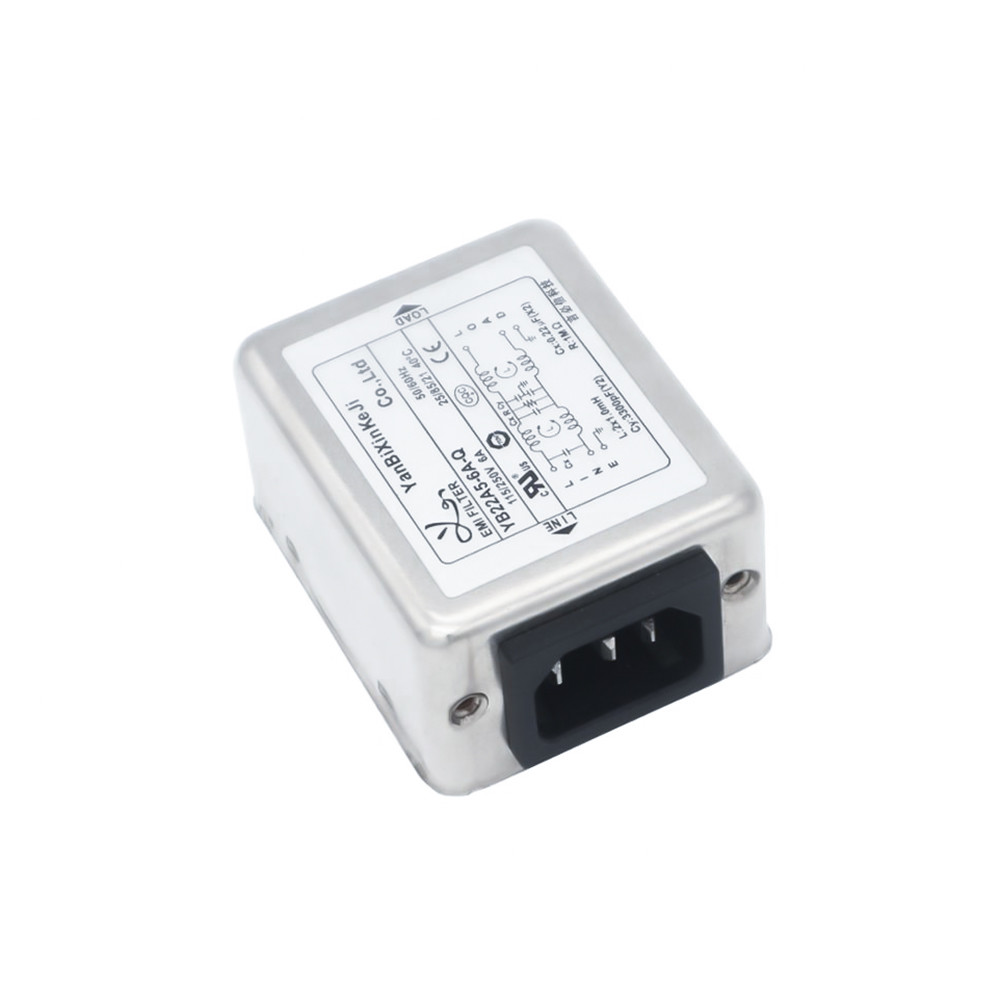

YB22A5-6A-Q EMI Filter Actual Picture:

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Measuring Equipment

Before production begins, we test the raw materials in our laboratory to ensure they meet our quality standards, environmental friendliness and safety. Salt spray tester, constant temperature and humidity tester, and pressure tester are some of the testing equipment we use to ensure the quality of our EMI filters from the source.

Company Profile

--Our company is a collection of electromagnetic compatibility (EMC) & EMI FILTERS research and development, production and sales of high new technical enterprise. After years of efforts of the company's personnel, products successively obtained the cUL，TUV，CQC, CE, ROSH certifications. We have ISO 9001:2008 to ensure the product quality. We became the listed company in 2016; and now we are the top 500 domestic enterprises designated suppliers!

--The products are widely used in many industries and fields;Based on professional and innovation,company joint the domestic well-known professional technical institutions, and cooperate with several inspection institutions and laboratories, to provide customers with different EMC related improvement of technology and services, to solve thier technical problems at the same time.

--Our Company is carrying out the principle of "quality first, integrity-based" to work.On the basis of communication and coordination, We’ll try our best efforts to satisfy customers needs about technology; quality; price; delivery. Looking forward to your support to witness our win-win!

Enterprise Concept

--For the human environment, safety and environmental protection, green health to provide superior EMI filter devices and dedication!

--Best quality, high integrity, and continuous innovation

--Quality First, Source Management, Customer Satisfaction, Full Participation, Continuous Improvement, Standardization and Humanity

--Strict management,continuous innovation and improvement, fast and efficient, steady refinement, first-class quality, customer satisfaction

Company Patent Certificate

Patent number：ZL 2017 2 1466063.1
Patent number：ZL 2017 2 1466065.0
Patent number：ZL 2017 2 1466117.4
Patent number：ZL 2017 2 1466141.8
Patent number：ZL 2017 2 1466143.7

Product Certificates
