    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    Ask Lasest Price
    Brand Name : YBX
    Model Number : YB21D2-6A-Q
    Certification : CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    YB21D2-6A-Q EMI Filter Fast Terminals Output Filter Single Phase Filter


    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    1.Product Details


    Product NameFast Terminals Output Filter
    ModelYB21D3-6A-Q
    Transfer FunctionLow Pass
    Package TypeSurface Mount/Bolts Mount
    Nominal Center Frequency150K-30MHZ
    Insertion Loss30~90dB
    Input Impedance50Ω
    Rated Voltage120V/250V
    Rated Current1~10A
    Environmental Temperature40°C
    Temperature Range-25℃~+85℃
    Operating Frequency50/60HZ
    Line to Line500VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/60HZ 7mA Max
    MOQ1000pcs
    Packing of one box56.5*28.5*22.5cm
    Lead Time5~20 weekday


    Product Picture:


    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    Physical Dimensional:

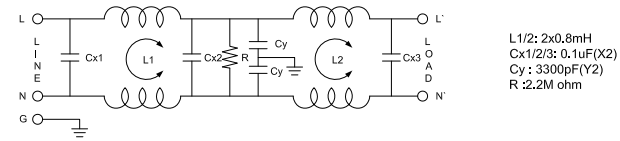

    Electrical Schematic:




    2.Application Field

    --LED lighting equipment
    --Computer supporting equipment
    --Financial equipment
    --Testing and measuring instruments
    --Household electrical equipment
    --Fitness equipment
    --Mechanical and electrical products
    --Medical equipment
    --Medical beauty instruments
    --New energy vehicles

    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter

    3.Certification

    We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.

    YB21D2-6A-Q Low Pass EMI Filter Fast Terminals Output Single Phase Filter
    4. FAQ

    Q1: What is the price of the EMI Filter?
    A1: The price of the product will be determined by the order quantity and the specific model.


    Q2: Are you a factory or a trader?
    A2: We are a manufacturer of EMI filters with 15 years of production experience.


    Q3: How long is the delivery time?
    A3: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.


    Q4: How about the payment terms?
    A4: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.


    Q5: What certifications do you have for your products?
    A5: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
