Two Stage Single Phase Filter 115V 250V 4A Fast - On Terminal Output EMI Filter

Ask Lasest Price
Brand Name :	YBX
Model Number :	YB27D4-4A-Q
Certification :	CQC CE CB TUV ROHSE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	60000 Pieces/month
Delivery Time :	5-8 work day

Add to Cart

Product Details
Company Profile

Two Stage Single Phase Filter 115V 250V 4A Fast - On Terminal Output EMI Filter

YB27D4 Two-stage Single Phase Filter 115V/250V 4A Fast-on Terminal Output EMI Filter

High Quality Two-Stage Single Phase Filter 115V/250V 4A Fast-On Terminal Output EMI Filter

Technical Specification:

Item	Dual Stage EMI Filter
Model	YB27D4-10A-Q
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max

Features:

-- Rated currents from 1 to 10A

-- General purpose filtering performance

-- Optional medical versions((R5) type)

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB27D4-3A	D4	3	Fast-on terminal
YB27D4-6A	D4	6	Fast-on terminal
YB27D4-10A	D4	10	M4/M6/M8 Screw
YB27D4-15A	D4	15	M4/M6/M8 Screw
YB27D4-20A	D4	20	Wire

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Tabulates:

Model No.	Rated Current @40°C	Terminal Options*			Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options*

YB27E4-1A	1A	Q	S	W	<0.8mA	Fig.1	115/250V	50/60Hz
YB27E4-2A	2A	Q	S	W		Fig.1
YB27E4-3A	3A	Q	S	W		Fig.1
YB27E4-4A	4A	Q	S	W		Fig.1
YB27E4-6A	6A	Q	S	W		Fig.1
YB27E4-8A	8A	Q	S	W		Fig.1
YB27D1-1A	1A	Q	-	W		Fig.1
YB27D1-2A	2A	Q	-	W		Fig.1
YB27D1-3A	3A	Q	-	W		Fig.1
YB27D1-4A	4A	Q	-	W		Fig.1
YB27D2-6A	6A	Q	S	W		Fig.1
YB27D2-8A	8A	Q	S	W		Fig.1
YB27D3-8A	8A	Q	S	W		Fig.1
YB27D3-10A	10A	Q	S	W		Fig.1
YB27D3-15A	15A	Q	S	-		Fig.1
YB27D4-10A	10A	Q	S	W		Fig.1
YB27D4-15A	15A	Q	S	-		Fig.1
YB27D4-20A	20A	Q	S	-		Fig.1
YB27D5-15A	15A	Q	S	-		Fig.1
YB27D5-20A	20A	Q	S	-		Fig.1
YB27F1-15A	15A	Q	S	-		Fig.1
YB27F2-20A	20A	Q	S	-		Fig.1

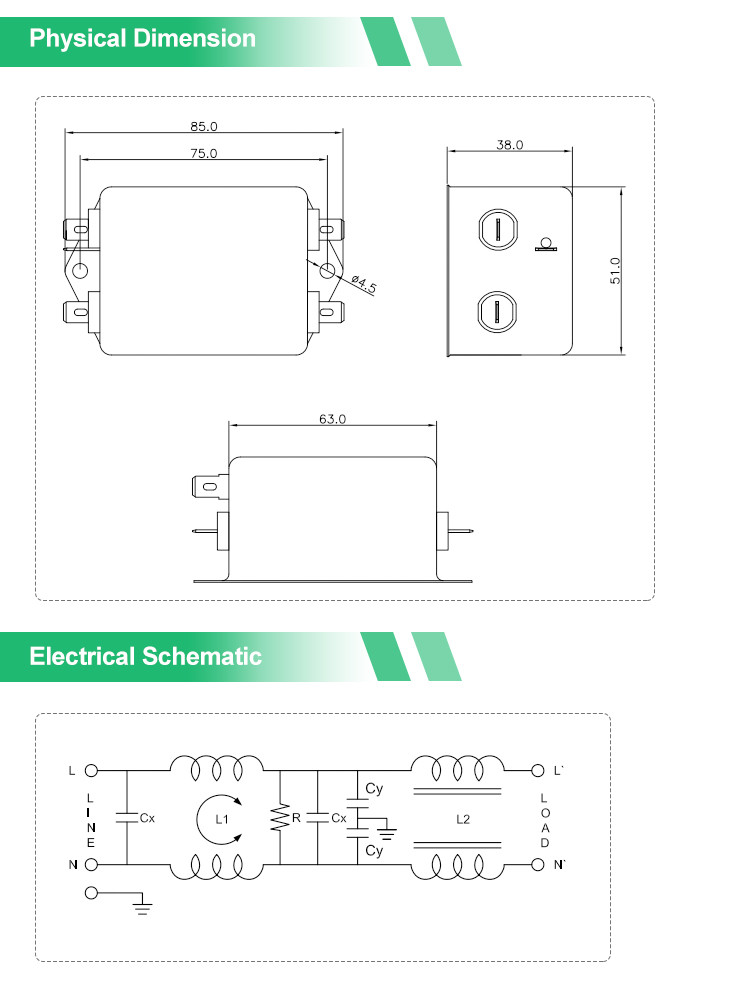

Electrical Schematic & Mechanical Dimension(Unit: mm)

Two Stage Single Phase Filter 115V 250V 4A Fast - On Terminal Output EMI Filter

YB27D4-4A-Q EMI Filter Picture:

Two Stage Single Phase Filter 115V 250V 4A Fast - On Terminal Output EMI Filter

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Two Stage Single Phase Filter 115V 250V 4A Fast - On Terminal Output EMI Filter

Product Tags:

Two Stage Single Phase Filter

250V Single Phase Filter

4A EMI Power Filter
